dot  Leather crafts & saddlery sewing machine

dot  Heavy zigzag sail making sewing machine

dot  FIBC making and Big Bag sewing machine

dot  Lifting slings cutting and sewing machines

dot  Climbing ropes and cords sewing machine

dot  Automated sewing units for military gears

dot  Thick thread leather sofa sewing machine

dot  Sewing machine for making leather bags

dot  Car upholstery decorative stitching machine

dot  Height safety harness sewing machines

dot  Lashing strap cutting & sewing machines

dot  Long arm sewing machine for tarps & covers

dot  Best heavy duty leather belts sewing machine

dot  Machine for sewing dog collars & leashes

dot  Inflatable products hot air welding machine

dot  Geotextile/coastal protection sewing solution

dot  Industrial rope and netting sewing machine

dot  Special sewing machine for carpets and rugs

dot  Best quality shoe making sewing machines

dot  Automatic buffing wheels sewing machines

dot  Specialized machine for other heavy fabrics

A key advantage for our company is professional experience in the field of heavy materials and thick thread. We are clear that our success depends on the success of our clients. We know that each company has its specific needs,so we work with personalized solutions, seeking to identify and meet the demand of each client. It is in this way that HighTex has earned the trust of important companies.

Since 2006, Hightex started to design and manufacture specialized industrial sewing machine for the U.S. armed forces, its allies, the defense industry and commercial OEMs.

For over 10 years, our customers have relied on HIGHTEX manufacturing company for custom-sewing automation that meet their stringent military specifications, production needs, quality standards and delivery requirements.

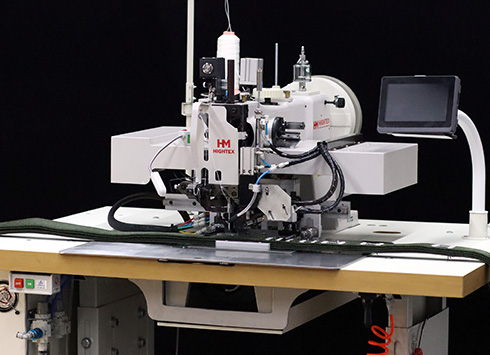

733PLC super heavy duty automatic pattern sewing machine for military parachute harness

This is the heaviest programmable pattern tacking machine in market today! Equipped with extra large barrel shuttle & bobbin (31.7mm dia. × 44.1mmL), and 66mm needle bar stroke ensures extra extremely strong needle penetration force). It can stitch extremely rigid parachute harness made of 4-ply Mil-W-4088 military spec Nylon webbing with each of 4.5mm, total thickness 18mm).

Click here for DEMO video

GLK700-6040 wide area automatic programmable pattern sewing machine for parachute webbing

this heavy duty automated sewing equipment features in large sewing field (600 x 400 mm) and large Barrel Shuttle hook (same to Mitsubishi PLK-E1008-H and Durkopp Adler 506-3). With custom made sewing frame for sewing pattern on panel of bullet proof vest, military tactical gear, Body Armor.

Click here for DEMO video

7273CNC heavy duty automatic pattern sewing machine for stitching military parachute webbing harness

This extra heavy duty programmable pattern tacking machine feature in large Barrel shuttle hook has been specially designed for processing the extreme thread and material thickness of heavyweight materials. With automatic thread trimmer/burner and custom made clamp/sewing frame for US Military (Army) straps.

Click here for DEMO video

MLK300-6040 Larg area automatic programmable parachute sewing machine

This high speed CNC programmable pattern sewing machine represents the highest quality in today market. Sewing patterns, stitch numbers and stitch length can be set with-in the sewing area using the included hand held programming unit with clear LCD screen and easy to follow icon driven menus. The adoption of the universal serial bus (USB) makes programming, updating and storage easier.

Click here for DEMO video

72008 Heavy duty electronic, programmable bar tacking & pattern tacking machine for air rescue systems

this automated sewing machine features in large Barrel Shuttle hook (same to Mitsubishi PLK-E2008-H and Durkopp Adler 506-3) and practical electronic controlling system. This machine can easily sew 2-5 ply synthetic webbing slings (3.5mm of each) together or stitch 2 ropes with each of 6-18mm(diameter).

Click here for DEMO video

GLK911-8020 Extra-large size programmable pattern sewing machine for reinforcement stitching extra-heavy duty slings, straps and belts

This custom made sewing automation equipped with extra large barrel shuttle & bobbin (31.7mm dia. × 44..1mmL) and large sewing area (800mm X 228mm). Ideal for sewing patterns on heavy duty lifting slings, (boat lifting slings and other slings for offshore applications), bulletproof vest carrier, body armor, aircraft arrestor tapes (tapes for aircraft arrester system) and rescue lift etc.

Click here for DEMO video

HighTex 828AM Heavy duty webbing point-marking cutter (heat cutter with marking)

828AM Heavy duty webbing point-marking cutter is an extra strong heat cutter and point marker for webbing straps. This affordable hot knife cutting and marking machine can automatically cut, seal and mark the positoin for subsequent sewing of height safety harness, seat belts, Ratchet straps / tie down straps, webbing lifting slings and military straps.

Click here for video on YouTube

828Q Programmable webbing laser cutting machine and hole punching machine. This CO2 Laser Cutter is capable of handling the toughest strip cutting tasks, it is perfect for angle cutting, shape cutting and hole punching a variety of products including harness webbing, seat belts, military straps, dog harness, Kevlar and more with ease.

Click here for video on YouTube

Kinedyne HM-750T the most powerful energy saving servo motor for heavy duty industrial sewing machines

A super powerful, quiet and reliable energy saving servo motor perfect for extra heavy duty webbing sewing machine. This high performance servo motor can save 60-80% electricity and improve 20-40% efficiency of the harness sewing machines. Usually the cost of servo motor can be recovered within 2-3 years by saving money on electricity. However the advantage of time savings and labor cost saving will make the actual return on investment faster.

Click here for 3D video

Click here for DEMO video

If you have any questions or concerns, please feel free to contact us at info@automatic-sewing.com, thank you!
