Is it possible to produce more safety harnesses and ropes? It is with the use of heavy industrial sewing machine of high quality and durability. This is a question many safety harness and rope manufacturers ask themselves, because increased production impacts many aspects of business activities: particularly when it comes to commercial production, efficiency and effectiveness. They are essential. This is exactly what we at HighTex have in mind when we design and build our heavy-duty sewing machines, and our customers' satisfaction is our reward.
Our process capability, low per unit cost and professional expertise allows us to deliver product on time, on budget and at the highest quality levels. And of course we're located right here in your backyard.
Again, if these difficult economic times have you working to tighten your supply chain, minimize risk and lower costs as a result, we should talk. We can guarantee all three.
The Benefits of HighTex Programmable Sewing Machines
Unmatched Precision
Programmable sewing machines can execute intricate stitching patterns with pinpoint accuracy. This level of precision is essential for applications like webbing, where precise stitching is crucial for strength and durability.
Enhanced Efficiency
These machines can be programmed to preform repetitive tasks. Significantly reducing labor costs and increasing production speed. By automating the sewing process, manufacturers can streamline operations and meet tight deadlines.
Consistent Quality
Programmable sewing machines eliminate human error, ensuring consistent quality across every product. This consistency is vital for maintaining brand reputation and customer satisfaction.
Versatility
These machines can be reprogrammed to accommodate different product designs and materials, making them highly versatile. This versatility allows manufacturers to adapt to changing market demands and customer preferences.
20+ years of combined experience in servicing and repairing this equipment, that will insure your machine can be serviced with minimal downtime.

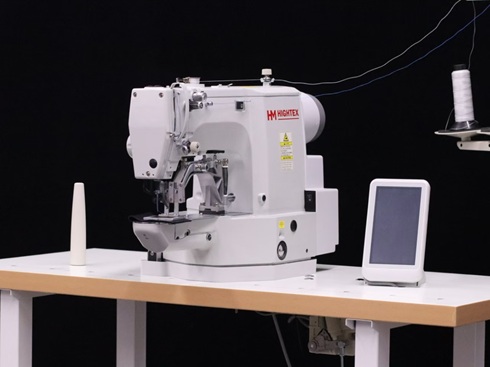

680HM High Speed , Medium-Weight Electronic Bar Tacker | The Compact Efficiency Specialist
The compact design offers excellent visibility, allowing the operator to easily load and remove materials before and after sewing. This machine delivers the highest cycle speeds for small patterns. If you are sewing thousands of identical sub-assemblies (such as small D-ring attachment loops on light webbing), this machine ensures the shortest cycle times and minimizes power consumption.
Choose the HighTex 680HM if you are manufacturing lightweight safety harnesses, tactical gear, lanyards, or animal harnesses where the reinforced stitch area fits entirely within a compact 60x80mm window. The double-bobbin capacity shuttle hook allows you to use 420dx3 (=Tex 138) thread.
Video on YouTube

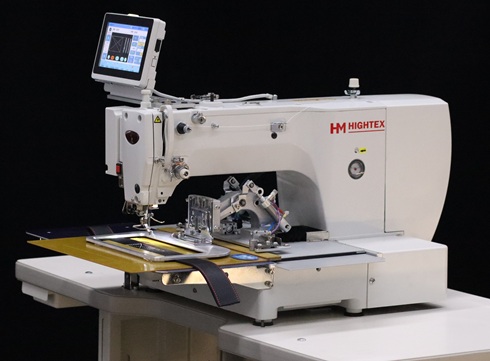

BAS-311H Medium-Weight Programmable Electronic Pattern Sewer | The Precision Stitch Specialist
The Brother BAS-311H automated sewing machine is globally recognized in safety harness and seat belt manufacturing for its pinpoint accuracy. While HighTex offers a significantly more affordable solution without compromising baseline performance: when the needle penetrates the webbing, the machine ensures the fabric moves precisely down to the millisecond. The double-bobbin capacity shuttle hook allows you to use 420dx3 (=Tex 138) thread.
Choose the HighTex BAS-311H if you are producing premium, commercial-grade fall protection gear where tight tolerances, pristine cosmetic stitch quality.
Video on YouTube
ASM911 Flagship High-Speed, Automatic Pattern Sewing Machine |The Flexible Workhorse for Heavier Thread
Compared to smaller models, the key advantage of the ASM911 is its large rotary hook featuring triple the bobbin capacity, which allows you to use thicker structural thread up to 840D/3. Heavier thread is a critical factor in ensuring the ultimate tensile strength of safety harnesses and fall protection equipment.
Because safety harnesses often require multiple reinforcement tacks across a wide area—such as waist belt and leg loop intersections—the ASM911’s expansive 300 x 200 mm sewing field allows you to sew multiple joints in a single automated cycle, drastically reducing labor time.
Choose the ASM911 if you want to balance cost and production volume while utilizing heavier structural thread or a larger sewing area to create multiple pattern tacks across the harness joints.
Video on YouTube

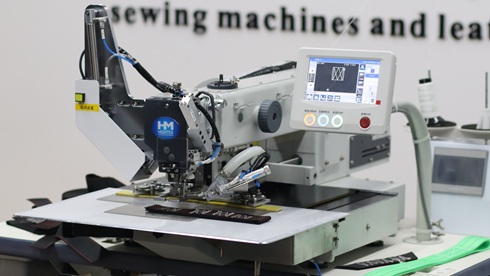

MLK600AG Automatic Safety Harness Sewing Machine With Anti-Bird-Nesting, Anti-Tangling, and Short-Tail Thread Trimming
This specialized pattern sewing machine is engineered specifically for the production of seat belts and safety harnesses, delivering consistent stitch quality and maximum productivity. It comes standard with an anti-bird-nesting device that completely prevents the thread tangling that typically occurs at the start of a seam on standard thread-trimming machinery. Additionally, the advanced automatic thread-trimming system leaves an extremely short remaining tail, completely eliminating manual trimming operations to maximize production efficiency. These consistent, high-strength stitches not only enhance product durability but also elevate overall aesthetics, ensuring your safety belts look and feel premium, refined, and highly reliable.
Video on YouTube

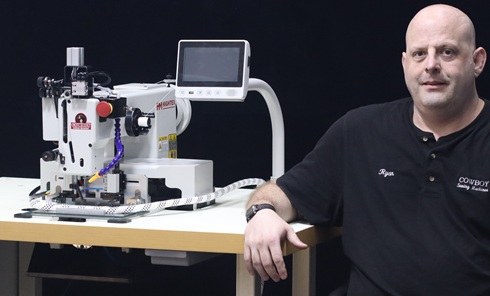

71008R Extra Heavy-Duty Automatic Safety Harness Sewing Machine | The Legacy Bestseller
The 71008R is a legacy workhorse in the safety harness industry. Introduced in 2006, it has been deployed by more than 1,000 safety rope and harness manufacturers worldwide. The primary advantage of the 71008R becomes especially apparent when sewing extra-thick, stiff harness webbing or high-density bar-tack seams that become extremely rigid after stitching. Thanks to its optimized sewing kinematics, robust design, and legendary reliability, this machine consistently delivers first-class stitch patterns. It also features interchangeable clamps, allowing you to switch from flat harness webbing to round climbing ropes or lanyards in minutes. This absolute beast allows you to sew through up to 18 mm of thick webbing using heavy-duty 1300D/3 structural sewing thread.
Video for sewing climbing ropes
7273PLK Heavy-Duty Automated Safety Harness Sewing Machine with Thread Trimmer | The High-Speed Automated Workhorse
The HighTex 7273PLK is widely considered the "sweet spot" for modern, high-efficiency safety equipment manufacturing. While the 71008 series represents foundational legacy technology and the 733PLC is reserved for niche rigging, the 7273PLK delivers the ultimate balance of speed, automation, and heavy-duty capability. Running smoothly at up to 800 RPM, it nearly doubles conventional stitching throughput. This allows factories to drastically increase daily output per operator and maximize profit margins on high-volume production runs.
Choose the 7273PLK if your facility requires high-speed production turnover and automatic hot-knife thread trimming for harness webbing ranging from 8 mm to 16 mm in thickness.
Video on YouTube
733PLC Extra-Heavy-Duty Automated CNC Pattern Sewing Machine | The Rigging Giant
Engineered with the raw penetration mechanics of a punch press rather than a standard garment machine, the 733PLC operates at a deliberate speed of 400 to 600 RPM to exert thousands of newtons of force. It effortlessly clamps, compresses, and sews through 6 to 8 plies of heavy synthetic webbing—such as 4.5 mm thick Mil-Spec Nylon—or stitches together two structural safety ropes up to 25 mm in diameter. It is purpose-built for ultra-thick V693 (Metric #4) thread, which resembles a heavy cord. Unless your facility manufactures military-grade parachutes, heavy cargo lifting slings, or multi-layered fall arrest systems exceeding a 450 kg capacity, this industrial giant is slow and unnecessarily robust for standard commercial harnesses.
Video on YouTube

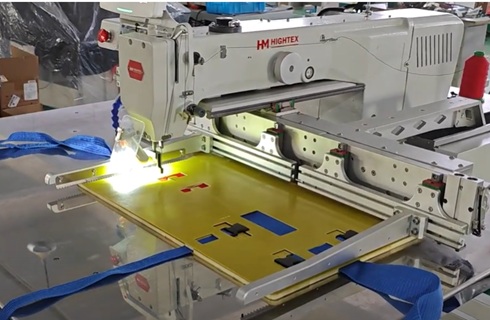

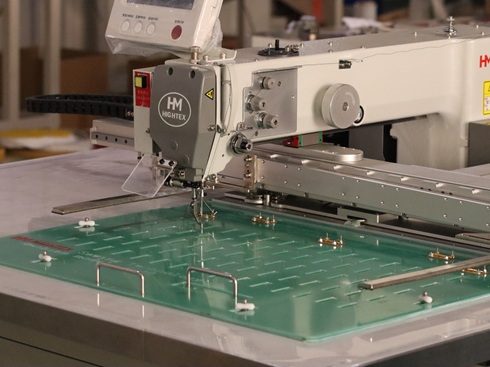

MLK6040 Large-Field CNC Pattern Sewing Machine for Full-Body Harnesses and Bulletproof Vests
The expansive 600 x 400 mm sewing area allows operators to lay out an entire harness section or vest body and sew multiple structural joints in a single automated cycle, drastically reducing labor time. A standout advantage of this system is its zero-downtime operation; the machine can work continuously without stopping thanks to its quick-change clamping mechanisms. This workflow increases production efficiency by up to 1.5 times compared to conventional heavy-duty pattern sewing machines. Additionally, pre-installed clamps minimize your dependency on highly skilled labor.
This large-area CNC sewing machine represents the ideal solution for manufacturing facilities seeking to lower labor costs and maximize profitability.
Video on YouTube
733CS Extra-Heavy-Duty Walking Foot Harness Sewing Machine
As one of the most powerful models in the HighTex range, the 733CS is among the heaviest-duty industrial sewing machines in production today. Engineered specifically for stitching extra-heavyweight materials, it comfortably handles high-tensile threads up to size Tex 600 (Govt. 8-Cord Nylon). It is purpose-built for manufacturing heavy-duty operations and products, including safety belts, logging straps, and extra-heavy-duty harnesses and slings made from up to 18,000 lb tensile-strength webbing. Additionally, a specialized alloy coating applied to critical components—such as the shuttle hook, shuttle race, and shuttle bed—ensures exceptional machine durability and extended service life.
Video on YouTube

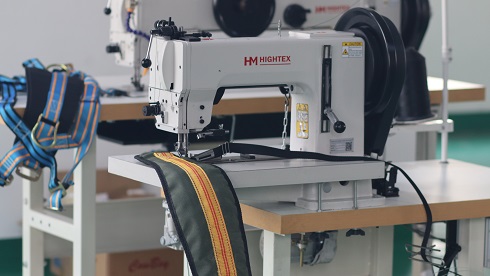

205-370BH Extra-Heavy-Duty Harness Binding Sewing Machine
This extra-heavy-duty, triple-feed industrial sewing machine features a specialized vibrating binder engineered specifically for edge-binding applications on full-body safety harnesses. The movable binder attachment perfectly tracks the curved contours of wide waist belts and leg straps, which are crucial for securely supporting the hips and thighs. Additionally, the generous presser foot lift of up to 20 mm, paired with a sophisticated triple-feed mechanism, is highly optimized for effortlessly handling thick, cushioned padding materials during harness assembly.
Video on YouTube

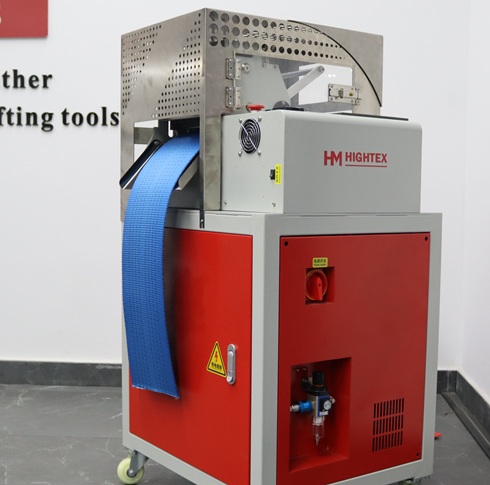

828ACM Heavy-Duty Automatic Webbing Cutting & Marking Machine
This advanced webbing cutting and point-marking system is engineered to cut nylon and polyester webbing precisely to length while delivering flawless, fray-free heat sealing along the edges. It features an integrated dot-marking function that applies highly accurate visual guides, showing assembly operators exactly where to place reinforcement stitches. Built for rigorous industrial environments, this harness webbing cutter is exceptionally durable and guarantees long-term, trouble-free operation. Additionally, this versatile hot-knife machine can be custom-configured to cut heavy-duty structural harness webbing up to 5 mm in thickness.
Video on YouTube
828Q Programmable Webbing Laser Cutting Machine | Advanced Webbing Hole and Shape Cutter
This heavy-duty CO2 laser cutting system is engineered to handle the most demanding synthetic strap processing tasks with ease. It represents the perfect automation solution for angle cutting, intricate shape profiling, and precise hole piercing across a wide range of heavy textiles, including safety harness webbing, automotive seat belts, and military-grade straps. Built exclusively with premium-grade components, the machine offers an extended service life while ensuring flawlessly sealed, fray-free edge quality and unmatched cutting accuracy. This high-precision, non-contact cutting method significantly reduces maintenance requirements and operational costs, ultimately boosting your overall factory productivity.
Video on YouTube

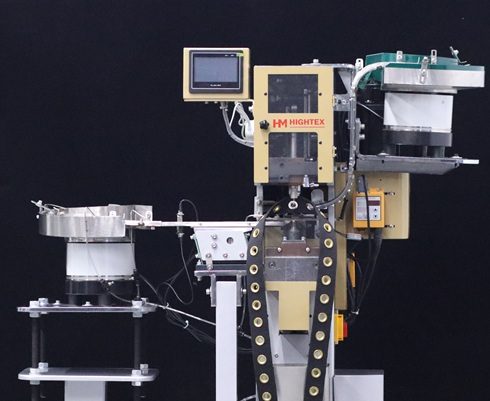

828X Heavy-Duty Automatic Grommet Machine
This advanced eyelet and grommet machine punches a hole in the material, feeds, and attaches both the grommet and washer—all in a single automated cycle. This highly efficient process creates a strong, exceptionally durable setting that maximizes production throughput and ensures a rapid return on investment (ROI). Compared to other self-piercing automatic eyelet machines on the market today, the definitive advantage of the 828X is its extra-powerful piercing force, which allows it to cleanly punch through high-density synthetic harness webbing up to 5 mm in thickness.
Video on YouTube
HM-750SH Heavy-Duty, Low-Speed Control Sewing Machine Servo Motor | Engineered for Precision Stitching
Because the construction of a safety harness is highly complex and difficult to sew, utilizing a low-speed, high-torque servo motor is critical for maintaining precise stitch control. This is exactly why the 750SH powerful servo motor is required. It delivers maximum needle penetration force even at exceptionally low operating speeds, allowing operators to navigate dense multi-layered webbing and tight corners with absolute accuracy. This level of precise control ensures that every single safety stitch is perfectly formed to meet strict tensile strength certifications.
Video for Quality Advantages
Best thread for sewing Nylon webbing and harness
HigTex P40 heavy duty UV treated sewing thread is a bonded polyester sewing thread, designed for applications exposed to the sun, salt water, wind, marine conditions and anywhere that can be tough on threads. It is one of the most strongest thread for safety and durable seams in the manufacturing of outdoor products and webbing products, such as lifting & rigging slings, cargo lashing belts & ratchet tie down straps, climbing rope & rescue rope, height safety harness & fall protection equipment, sailmaking, parachutes, tents, awnings, covers and military gear.
HighTex P40 high strength bonded polyester thread features at affordable price and will greatly improve your sewing efficiency.
Click here for more information
Which automatic sewing machine is best for safety harness?
Click here for more information
If you have any questions or concerns, please feel free to contact us at info@automatic-sewing.com, thank you!
|
