CB4500 Heavy duty saddlery sewing machine
CowBoy CB4500 has become the standard in the saddle and harness industry. It has been widely used for stitching bullet loops, saddle skirts, headstalls, halters, breatstcollars, holsters, knife sheaths, chaps, knee pads, covered stirrups, gun belts, cases and other leather craft. The saddle and harness maker machine can also be used for topstitching leather sofas, fabric sofas, car seat covers, luggage, suitcases, heavy hand bags, heavy textile products, briefcases, and the like.
Watch demonstration videos and maintenance videos on youtube:
Click here for Demo video
How to oil your Cowboy CB4500
How to thread your Cowboy CB4500
How to adjust thread tension
This leather sewing machine has outstanding capability in feeding multi-layers of heavy materials due to its compound feed mechanism. The compound feed mechanism of this leather saddle sewing machine features a feed dog, walking foot, and needle feed that all work in unison to insure feeding of the most difficult materials with ease. It allows one to sew from 4 layers of 16 oz. harness leather down to thin chap material without needing to excessively adjust the sewing machine tensions. This leather stitching machine has a full reverse mechanism that is capable of sewing the same length stitch in forward and reverse.
The presser foot lift of CB4500 saddle stitcher and harness stitcher is up to 23mm (7/8’’) for smooth placement/removal of extra heavy materials. It is capable of sewing most materials up to a maximum sewable thickness of 3/4"-7/8".
Special flatbed tabletop attachment available that allows the cylinder arm sewing surface to be converted to a flat sewing surface to allow for better stitching with certain types of work.
12 inch Mega Flywheel of this saddle and harness sewing machine is to create more torque for very hard and rigid leather for saddle makers and harness makers. This flywheel is the largest flywheel of its kind.
A full array of attachments are available for this leather sewing machine such as speed reducer, left toe foot, right toe foot, double toe foot, fabric foot, material guide, as well as holster needle plates, flat slotted needle plates, and stirrup needle plates. Most needle plates and presser feet for the machine are made of solid investment cast stainless steel. Cowboy is the only maker of machines that offers solid stainless steel presser feet and needle plates.
All parts of this sewing machine are interchangeable with Juki TSC-441, and it is a good replacement machine of Durkopp Adler 205-370.
Here we like to introduce you the CowBoy CB4500 Special Edition, the Black Stallion standout in the herd of average machines. The gleaming black paint has been masterfully painted by a American pinstripper...by hand. Each design is unique, each machine is different! Talk about a Show Stopper!
Most importantly, critical areas have been given a golden coating of Titanium Nitride, the super hard ceramic finish. Titanium Nitride coatings allow the parts to last up to 3 times longer than normal.
A full array of attachments are available for improving high productivity and perfect seam quality. Below special sewing parts also fit to CowBoy CB3500, Juki TSC-441 and Seiko TH-8B heavy duty sewing machines for the leather and tack trades.
#HT-MC01 Material Guide / Edge Guide: easy to make sure straight stitch.
#HT-MC02 Suspending edge guide (drop down guides): get stright stitches with a guide that flips up and out of the way when not in use - never needs removed.

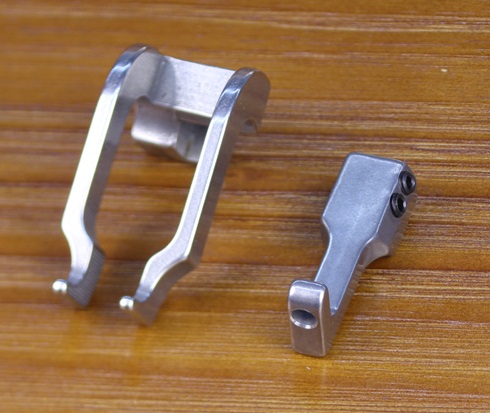

#4500F-A1 Double toes harness maker's foot (standard assembled on machine): curved design allows closer stitching around edge of hardware. Smooth bottom will not mark leather
#4500F-A2 Narrow center foot (standard assembled on machine): helps to get close to spots, great for detailed sewing work
#4500F-A3 Open toe center foot: allows you to see exactly where your needle point is at all times
#4500F-A4 Inside walking foot with groove: the groove underside avoid pressing on thread (for example braided thread) during sewing operation, guarantee perfect finish.
#4500F-A5 Left-toe presser foot: great for close stitching on the right side
#4500F-A6 Right-toe presser foot: great for close stitching on the left side
Note: A1, A5 or A6 must work together with A2, A3 or A4, when order please be sure a pair of "A" class press foot.
#4500F-B1 Outside blanket foot (standard supplied in accessoires box): Ski toed feed with teeth on the bottom to grip and help to feed fabric and webbing.
#4500F-B2 Center blanket foot (standard supplied in accessoires box): Ski toed feed with teeth on the bottom to grip and help to feed fabrics and webbing.
Note: B1 must work together with B2, when order please be sure a pair of "B" class press foot.
#4500F-C1 Left-edge presser feet: narrow toe foot that provides the most visibility around the presser foot and allows you to sew along the edge of your leather
#4500F-C2 Right-edge presser feet: narrow toe foot that provides the most visibility around the presser foot and allows you to sew along the edge of your leather
#4500F-C3 Center walking foot for paddle feet: creates a groove in the leather and lays the stitch in that groove for a tighter pull-down stitch
Note: C1 or C2 must work together with C3, when order please be sure a pair of "C" class press foot.
#4500F-D1 Inline foot set: allows you to sew inside narrow channels and very close to an edge, step, or buckle.
#4500F-E1 Cord piping foot set: designed to handle large welting that the standard piping foot cannot walk over.
Click here for DEMO video
#4500D-1 Blanket feed dog (standard supplied in accessoires box): Ski toed feed with teeth on the bottom to grip and help to feed fabrics and webbing
#4500D-2 Non-teeth feed dog (standard assembled on machine): avoid marks when sewing leather goods and upholstery.
#4500N-1 Slotted needle plate: avoid mark on the underside leather for some items.
#4500N-2 Stirrup plate: provides a raised surface and will allow you to sew right up against the left side of the machine. Ideal for covering stirrups and shoe welts
#4500N-3 Holster plate: provides a raised surface and will allow you to sew right up against the left side of the machine. Perfect for stitching holsters, handbags, pouches and even shoe welts.
#4500N-4 Saddlery needle plate: this flat-top throat plate is very helpful to sew straight.
HT-SP03 Bearing drive Speed Reducer: give more torque and greater stitching control
HT-BF01 Heavy duty leather binder attachment: it is simple and economical hevy duty binding attachment, for binding operation of leather cutting edges, in the production of leather hand bags, shoes, carpets and car rugs etc.
Click here for DEMO video
HT-BF02 Movable binder: it is vibrating binder attachment and due to this feature, a beautiful tape binding finish for heavy
materials or elastic tape can smoothly and easily be performed. This Binder kit can work with Juki TSC-441 leather sewing machine.
Click here for DEMO video
#HT-TA03 Special flat work table platform: allows the cylinder arm sewing surface to be converted to a flat sewing surface to allow for better stitching with certain types of work.
#HT-TA03B Flat table top attachment: same as #HT-TA03, but it is smaller and easy to install, create a flat sewing surface to allow for better stitching with certain types of work.
#HT-079 LED work light: 80 watt Hi-Intensity LED working light with heavy duty "C" type clamp, suitable for any heavy duty industrial sewing machine
