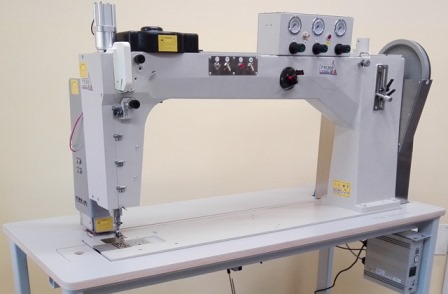

366-76-12-HM Extra heavy duty long arm tiple zigzag sewing machine with large Barrel shuttle and puller feed for sail makers and repairs in USA

This specialized sail making machine gives large working space underarm eliminates the effort and time needed to fold and roll wide sections of sailcloth and cover fabrics during sewing operations; This machine is recognized as the ultimate sail maker sewing machine currently available, it is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas and leather; Extremely strong needle penetration force, can easily sew sturdy webbing reinforcement and extra heavy sail corner patches; The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing sails, tents and tarpaulins, using extra thick thread up to size V277; With 4 Cams for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag, cover all demands of modern sail making industry; Standard supplied with heavy duty top and bottom feed puller, which is perfect for sail makers; This robust and reliable sail sewing machine is designed for mass-production sail making business (similar with Durkopp Adler 366-76-12-HM).

  Click here for video

Made in Italy; The largest industrial zigzag sail making machine in today market, with 460mm(H)×1000mm(L) clearance room under the arm; The heaviest zigzag sail maker sewing machine with 27 mm of presser foot lift; Standard supplied with 4 cams for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag, cover all demands of modern sail making industry; The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing sails, tents and tarpaulins, using extra thin and thick thread up from V92 to size V415; The extremely strong needle penetration force, can easily sew sturdy webbing reinforcement and extra heavy sail corner patches; This huge sail making machine has been developed taking into account the requirements of sail makers and repairs, Its design with several new technologies, perfectly adapted to sew large sails and tents.

9518-30 Long arm zigzag sewing machine for spinnakers and windsurfing sails
9518-30-17 Long and high arm zigzag spinnakers and windsurfing sails sewing machine

The application covers straight stitch, 1-step, 2-step, 3-step and 4-step zigzag in production of spinnakers sails, and up to medium heavy sails; It employs a parallel vertical needle bar motion for stronger striking power and can easily sew sturdy webbing reinforcement and heavy duty corner patches; This spinnakers machine is capable of powering its needle through 7 mm of Dacron, Kevlar, Webbing, Canvas and leather; The heavy duty built-in puller behind the pressure foot helps sail makers create a smooth, even stitch on windsurf sail; A wide range of sewing threads can be used: V46, V69, V92 & V138; Its modern design features: a zigzag width of up-to 10 mm and a stitch length of up-to 5 mm; It is interchangeable with Durkopp Adler 72525, therefore it is easier for the sail lofts already worked with Adler 525 spinnakers sewing machine.

  Click here for video

728-30 Twin needle extra heavy duty long arm industrial sewing machine for sails,upholstery, tarpaulins, awnings and camping equipment

Long and wide working space is suitable for sizable materials such as military tents, tarpaulins, sails and canvas sheeting etc; It features a triple feeding action by way of: bottom feed, needle feed and walking foot top feed that can easily sew layers of slippery materials; Is fitted with two extra large vertically mounted hook & bases (6 times bigger compare to regular industrial sewing machine) for sewing with very thick thread up to Nm 10/3; Up to 10 mm long stitches for decorative topstitching seams; Excellent climbing properties and high needle penetration power guarantee easy sewing thick spots or cross seams, without skipped stitch, loosing bottom thread and shorten stitch length; A safety clutch is fitted to help prevent damage to the hooks, bevel gears and other important parts, should the machine become jammed or over-loaded; Heavy duty top and bottom feed puller is available as option.

  Click here for video

204-76-370 Heavy duty triple feed long arm upholstery sewing machine with large Barrel shuttle hook for thick thread decorative stitches on sofa & armchair, covers, marine & auto upholstery

This heavy duty industrial sewing machine arm has been extended to give 760mm clearance, which is very useful when sewing larger panel, for example: lounge sofa, car seat, marine upholstery etc.; It is fitted with an extra large shuttle hook assembly (204 type) for use with heavy weight & extra heavy weight materials and extra thick threads; Constant stitch lengths due to optimized triple feed mechanism, even in case of extremely thick materials; Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads up to Nm 8/3 or 1.4mm braided thread; The sewing foot stroke up to 10 mm allows the safe climbing over differently high material plies; This long arm industrial sewing machine with a cheaper price than others on the market offers average European quality standards. Standard supplied with strongest sewing machine servo motor with speed control and needle positioning.

  Click here for vide

733-30 Super heavy duty long arm industrial sewing machine for sails, parachutes tents

This extra heavy duty top and bottom feed lockstitch machine comes with a 760 mm long arm clearance and extra wide bed to make it easy to sew large articles; The large machine pulley helps the machine to attain strong striking power - thus making sewing on multi-layer extra heavy material, whether slippery or gummy simple; The cam thread take up and large shuttle hook with large bobbin capacity mean less down time for bobbin changes, even using extra thick thread and has a thread rating up-to size T-700 (=2000d X3 or V693); Its extra high foot lift (32 mm) and long needle bar stroke make it the ideal machine in the sewing of extra heavy weight materials; Standard delivered with pneumatic presser foot lift, pneumatic reverse stitch and needle cooler.

  Click here for video

7461-37 Super long arm cylinder bed heavy duty compound feed lockstitch machine
7411RL-37 Long arm cylinder bed transverse seam machine (Feed up the arm)

The sewing machine cylinder shaped arm has been extended (complete casting, not a cut and piece extended arm) to give approximately 960mm clearance, which is very useful when sewing larger items, for example: golf bags, luggage bags, industrial boots, covers etc.; The special extra long feed up the arm cylinder machine is suited to sewing for example: large tubular shapes, golf bags, luggage bags, tents, sails, parachutes, umbrellas, fishing gear, cushions etc.; It is fitted with an extra large shuttle hook assembly (204 type) for use with heavy weight & extra heavy weight materials and extra thick threads; The presser foot has an extra high lift and can go up to 23mm, allowing for a large range of heavy & extra heavy weight material to be used.

  Click here for video

74400-25 One needle long arm heavy duty triple feed upholstery sewing machine
74420-25 Two needle long arm heavy duty triple feed upholstery sewing machine

The solid long arm is factory cast and offers greater strength & stability when compared to a cut and piece extended arm; It features a triple feeding action by way of: bottom feed, needle feed and walking foot top feed and is fitted with a large vertically mounted hook & base for use with medium to heavy weight materials; It is fitted with 2x large vertically mounted hook & bases which offer increased capacity for heavy duty sewing threads; A safety clutch is fitted to help prevent damage to the hook, bevel gears and other important parts, should the machine become jammed or over-loaded. Equipped with revolutionary new powerful servo motor for heavy duty leather upholstery sewing machine (very powerful, silent & reliable energy saving servo motor).

Click here for video

72600L25 Heavy duty long arm walking foot lockstitch sewing machine for truck covers, sails, tents and tarps

The long sewing machine arm allows up to 635mm clearance to the right of the needle, which is approximately two and a half times the clearance of a standard arm machine; The walking foot action is driven and combines with the powerful bottom feed to produce a positive feeding motion for extra heavy use; Fitted with Singer 132K type large horizontal axis hook & bases for use with heavy to extra heavy weight materials, used for sewing thick leather, canvas, fabric, plastic, webbing, fiberglass, Kevlar, rubber; It is a friendly and high efficiency industrial sewing machine suitable for all heavy weight sewing applications. Equipped with revolutionary new powerful servo motor for heavy duty industrial sewing machine (very powerful, silent & reliable energy saving servo motor).

  Click here for video
