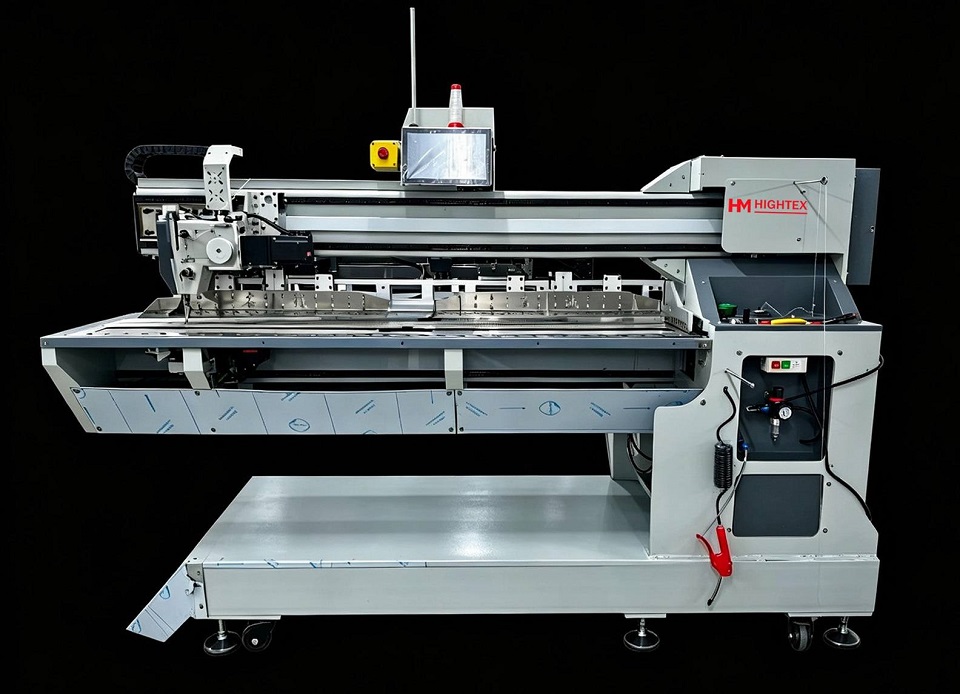

FIBC911-500H Long Arm CNC Automated Sewing Machine for Internal Baffles and Lifting Loops (Handles)
The major advantages:
1. High Speed and Increased Productivity
Up to 1,600 SPM: Operating at a maximum speed of 1,600 stitches per minute (SPM), it is significantly faster than typical manual heavy-duty machines.
Sewing Automation Cycle: The operator simply positions the material, and the machine automatically executes the entire programmable reinforcement pattern (such as an X-Box or double-W stitch). This eliminates the need for highly skilled labor, allowing anyone to operate it with ease.
2. Large Extended Sewing Field (1500mm Y-Axis)
Deep Arm Reach: It features a massive 150mm (X-axis) x 1500mm (Y-axis) sewing area.

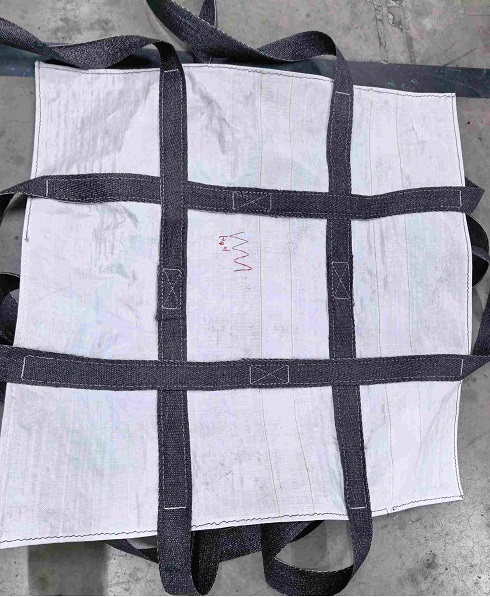

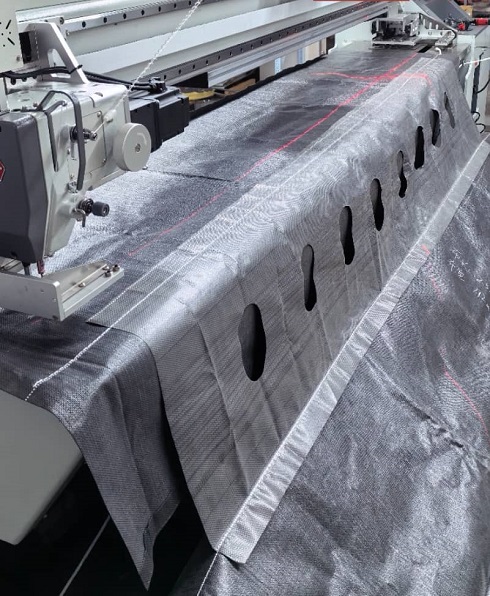

Seamless Bag Insertion: The extended 1500mm sewing length allows the machine arm to reach deep inside the body of the Big Bag, enabling the sewing of both internal baffles and lifting loops (handles).
3. Giant 6X Bobbin Capacity
Fewer Thread Changes: It is equipped with a specialized 6-times large rotary hook and extra-large bobbin system.
Minimized Downtime: Because heavy polypropylene (PP) webbing requires very thick thread (2500-4000 Den). The 6X capacity allows the machine to run continuously for long shifts without stopping for frequent rewinding.
4. Dramatic Labor & Skill Cost Savings
No Skilled Labor Required: Sewing heavy lifting loops manually requires an elite, highly experienced operator to steer fabric panels, loops, and Baffles. With the FIBC911-500H, a single unskilled operator can load the fabric and press start.
5. Flawless Seam Consistency and Safety Compliance

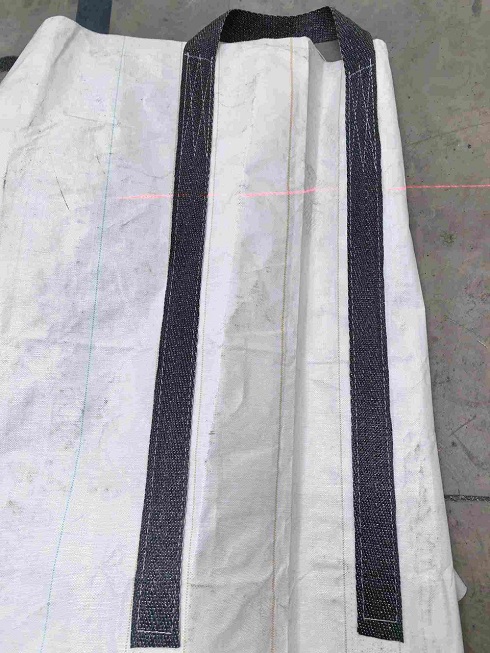

Calibrated Crosshair Laser: By providing an exact reference point, this feature prevents lifting loops and internal baffles from being sewn crookedly, ensuring every completed bulk bag meets strict load-bearing safety certifications.
Guaranteed Uniformity: Automation ensures uniform stitch length, consistent tension, and perfectly balanced reinforcement patterns that easily pass industrial load-safety inspections.
