Sewing machine for attaching 20mm rope to net border

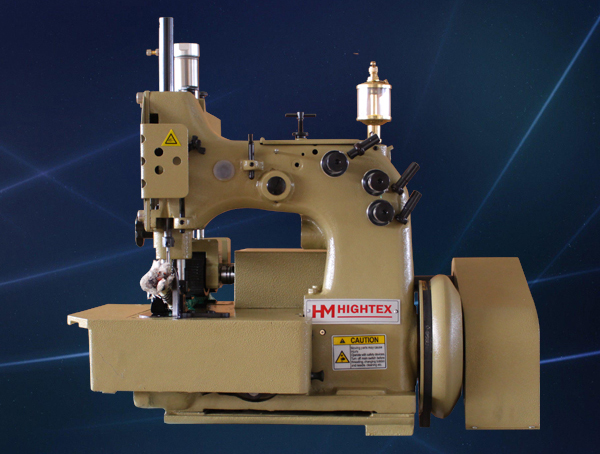

FIBC500 Heavy-Duty 3-Thread Net Overedging Sewing Machine | Industrial Netting & Rope Overedging Machine

Your advantages:

1. Heavy-Duty Stitching: Single-needle, 3-thread overedge system designed for attaching tensioning and border ropes to nets.

2. High Capacity: Effortlessly sews ropes up to 20mm thick (varying by net thickness and knot size).

3. Optimized Mesh Size: Perfect for joining nets with a mesh width of 45mm or larger.

4. Advanced Puller Feed: Standard top and bottom synchronized puller feed ensures smooth, wrinkle-free material transport.

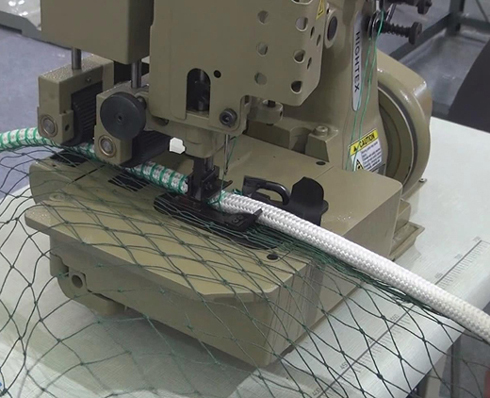

Heavy Duty Netting & Rope Overedging Sewing Machine

5. Revolutionary Servo Motor: Equipped with a next-generation industrial servo motor that is exceptionally powerful, silent, reliable, and energy-efficient.

Industrial Netting & Rope Overedging Machine

6. Versatile Applications: Ideal for manufacturing and customizing sports nets, safety/fall-arrest nets, fishing nets, military cargo nets, climbing nets, agricultural netting, and barrier solutions.

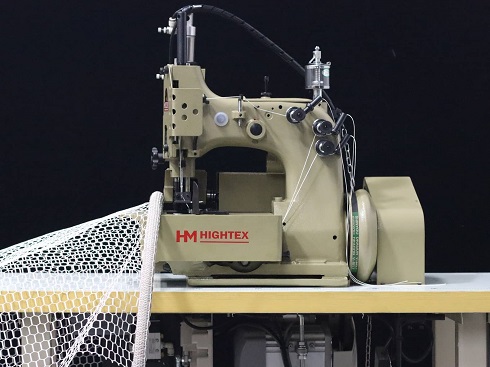

Union Special 81500CZ rope net sewing machine

Applications:

Perfect for fabricating heavy-duty net borders, including fishing nets, military cargo nets, sports nets, fall-arrest safety nets, cargo meshes, climbing nets, agricultural netting, barrier nets, and other custom industrial netting solutions.


Specifications:

Stitch types:

504

Max. Sewing Capacity:

16-25 mm

Max. sewing speed:

1500 RPM

Capacity under presser foot:

23mm

Needle System:

9853GA300/120

Feed type:

Top and bottom feed+ puller feed

Tariff code (HS code):

8452290000

Total Overedge Stitch Width:

23mm

Stitch range:

4 - 12mm

Standard setting:

10mm

Motor:

750W, 200-240 Volt 1 or 3 Phase

Air pressure:

0.6 MPa

Thickness of Ropes:

6-20mm

Needle Stroke:

71mm

Number of yarn:

3

Presser foot lift

Pneumatic Controlled

Needle Thread:

Net Yarn 210/24 or 210/30, PP Yarn, 4000 Denier

Looper Thread:

Net Yarn 210/24 or 210/30, PP Yarn, 4000 Denier

Package (assembly):

1050x1380x625MM, 135KGS

Lubrication:

Manual lubrication
