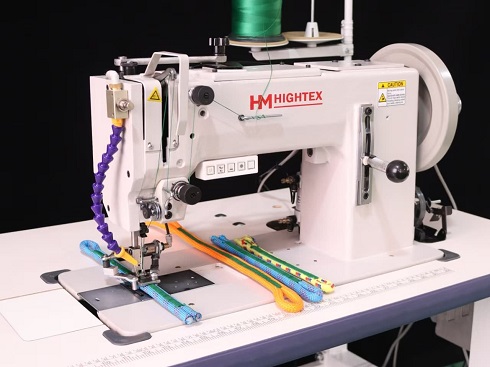

9266 Extra heavy duty straight stitch and zig zag
sewing machine with large Barrel shuttle hook
for sails, parachutes, tents and leather goods

Durkopp Adler 266-1
Durkopp Adler 266 zigzag sewing machine
Parallel vertical needle bar motion
Durkopp Adler 266-1 heavy duty zigzag
Large Barrel shuttle hook

Your advantages:

1. It employs a parallel vertical needle bar motion for extremely strong needle penetration force, can easily sew sturdy webbing reinforcement and extra heavy sail corner patches, this extra heavy duty zigzag sew machine is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas and leather;

2. The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing sails, tents and tarpaulins, using extra thick thread up to size V277, as well as thick decorative thread Tex 400 or 1300dx3 or 1.2mm braided thread;

3. A large Zigzag width of up-to 12mm to give nice decorative or functional stitching on a wide range of applications;

4. The basic mechanics (Shuttle hook, adjustments and times) is the same with Adler 166 and Adler 266 heavy duty zigzag, therefore it is easier for the manufacturers who already worked with Adler zig-zag sails sewing machines;

5. This zigzag sewing machine can also be set to sew straight stitch;

6. Pneumatic foot lift, pneumatic reverse stitch, needle cooler and zigzag binding device are available as option.

Typical Applications:

1. Sails making and repairing: for straight stitch or zigzag stitch heavy duty reinforced webbing straps to the edges and patching thick corners;

2. Parachutes manufacturing: specialize in sewing heavier thread used in the manufacture and repair of parachute harnesses. Adjusting the stitch regulator allows the rigger to do an acceptable job sewing bar tacks;

3. Carpets and rugs production: joining carpets by the zigzag stitch and binding carpet edges;

4. Shoes making: welt seams, zigzag, straight and coarse stitching operations in productions of shoes and footwear;

5. Furniture upholstering: thick thread decorative seams on upholstery leather and soft furnishing fabrics, for example leather sofa, bags.

Click here for video 1                  Click here for video 2                  Click here for video 3


Max. Sewing Speed:

800 rpm

Hook Type:

KSP-204 Large Barrel shuttle hook

Presser Foot Lift:

20mm (by pneumatic foot lift)

Needle bar stroke:

56 mm

Needle System:

794 # 160 250

Max. Thread size

V277,Tex 400 or 1300dx3

Stitch Length:


Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Max. zigzag width:

12 mm

Take up stroke:

96 mm

Working space:

320mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

760x480x620MM, 77KGS

Tariff code (HS code):
