7273CNC Electronic controlled programmable pattern sewing
machine with large Barrel shuttle hook for synthetic webbing

7273CNC/S Heavy duty pattern sewing machine for reinforced stitching lifting slings

7273CNC/X Heavy duty pattern tacking machine for ratchet straps (lashing straps)

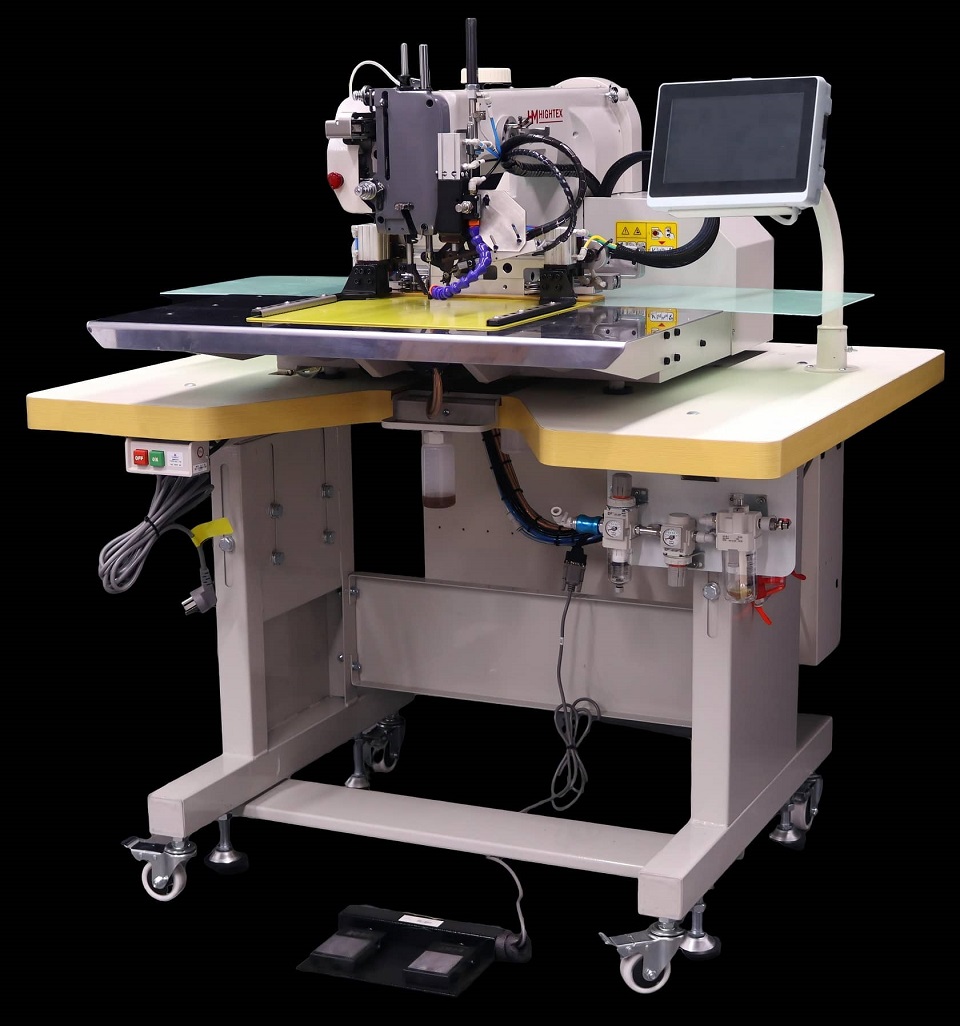

Automatic lifting sling and lashing strap sewing machine

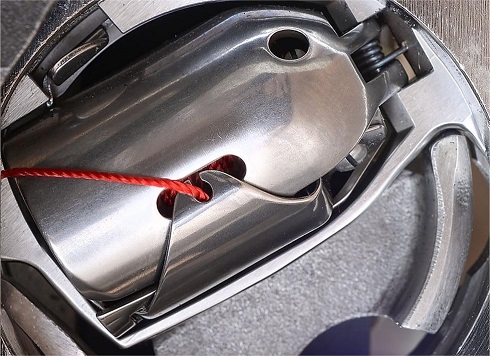

Mitsubishi PLK-E1008H Barrel shuttle hook

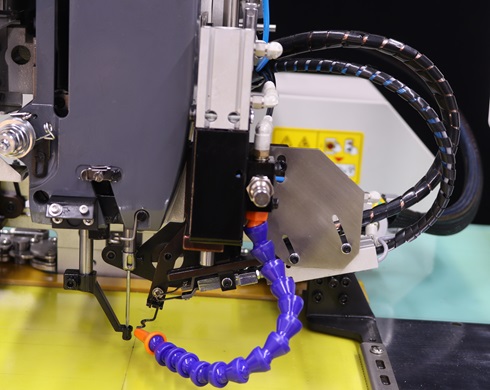

Mitsubishi PLK-B1008H thread burner

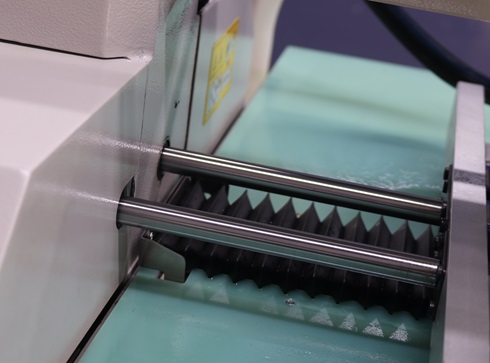

Quick-change claming system

Your advantages:

1. Long sewing cycles by large Barrel shuttle with large bobbin capacity, even sewing very heavy materials with extremely thick thread;

2. High clamp lift and large needle penetration power allow the processing of extremely thick materials, such as Nylon, Polyester, Polypropylene, Webbing, Kevlar, Vinyl, Leather and Canvas, can easily sew 2-4 ply synthetic webbing slings (3.5mm of each) together;

3. The specialized sewing automation improves quality, lowers production time and reduces operator involvement, in many cases it is possible to run two or three automated sewing units with only one person, great for saving labor cost;

4. The burning type automatic thread trimmer (heat cutter) is special designed for cutthing very thick Polyester sewing thread and Nylon sewing thread (without fringing);

5. The quick change clamping systems guarantee the flexibility of this automation sewing equipment, easily switch between the production of heavy duty lifting sling, cargo lashing straps, safety harness for fall protection equipment and other various heavy weight applications;

6. This heavy duty large area programmable pattern sewing machine is completely assembled and tested, Ready to Operate.

Applications:

Nylon or Polyester lifting slings, boat lifting straps, cargo lashing straps (Ratchet straps), safety harness, military equipment, backpacks, tow strap, recovery strap, crane slings, military equipment, spanzet, life vest, fall protection equipment, shoes sole, rigging products and parachute harness.

Click here for video 1                                          Click here for video 2                               Click here for video 3

Specifications:

Max. Sewing Speed:

700 RPM

Hook Type:

Large Barrel shuttle hook

Sewing Area:

300x200mm

Needle System:

Schmetz 794 (DYx3) #180-#280

Max. Thread size

Metric #7, V415, T-400, 1300dx3

Optimal sewing thickness:

4-15mm thick synthetic webbing(Nylon, Polyester etc.)

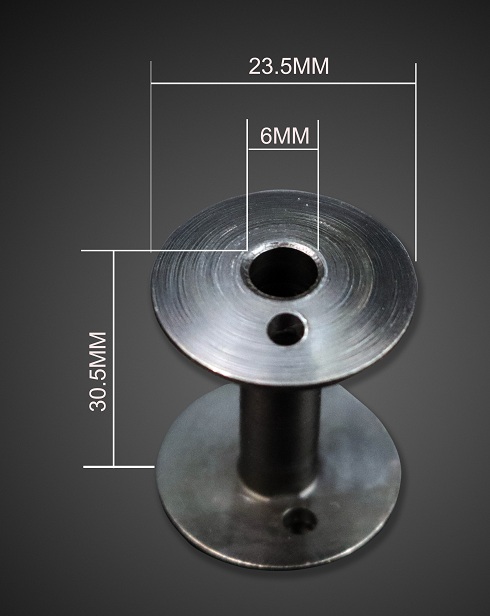

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Stitch Length:

0.1~12.7mm

Control system:

Closed-Loop Control

Work Holder Lift :

38mm

NeedleBar Stroke:

56.3mm

Presser Foot Lift:

20mm

Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

520 patterns

Needle cooler:

Cold air

Pattern Storage :

Internal Memory USB

Pattern Input :

Touch Screen

Max. Number of Stitches:

8000 per pattern

Drive Motor:

Limi-Servo (750 Watts)

Air pressure:

0.6 MPa

Power:

200-240 Volt 1 or 3 Phase

Thread trimmer system:

Upper and Lower burner

Package (plywood case):

1180*1200*1420mm, G.W: 300KGS

Tariff code (HS code):

8452219000
