7269 Industrial Cylinder Arm Leather Sewing Machine

– Built with Genuine Adler Parts

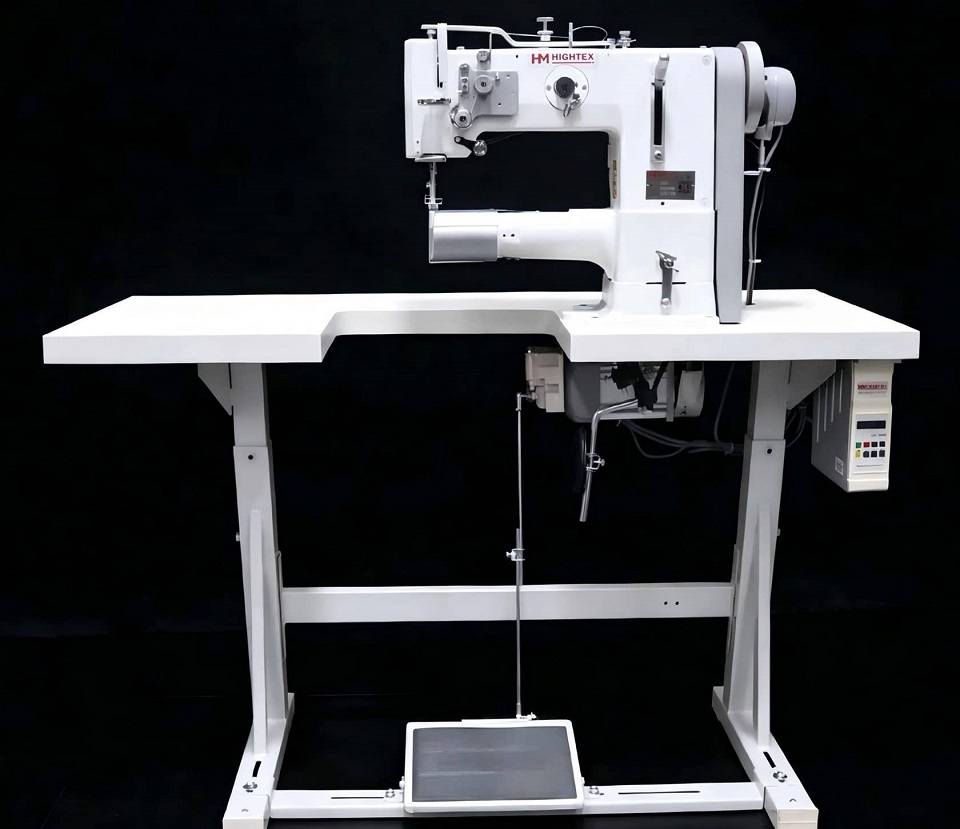

Durkopp Adler 269-373 Upholstery sewing machine

Your advantages:

1.Superior 3-Dimension Feeding Mechanism: The 7269 features a high-performance triple (unison) feed system (synchronized needle feed, bottom feed dog, and alternating walking feet).

Leather sewing machine

2.Full-Motion Feed Dogs: Unlike thinner cylinder arm machines (like the Adler 69 or Pfaff 335), which often feature feed dogs that only move back and forth, the 7269's slightly thicker arm accommodates a full-motion mechanism where the feed dogs move both back-and-forth and up-and-down. This provides unmatched grip and smooth material transport on highly slick, sticky, or uneven leather layers.

3.Large Vertical-Axis Hook System: Most standard cylinder arm machines feature a horizontal-axis hook (where the bobbin case drops in from the top or front facing you). The Adler 269 features a large vertical-axis hook assembly.This layout allows the thread to loop off the bobbin with less twisting, delivering world-class stitch quality and highly consistent tension.It also accommodates a larger vertical-axis bobbin, which significantly reduces down-time when sewing long runs of heavy bonded threads (like #138 nylon).

4.Built-In Mechanical Safety Clutch: To protect its highly precise internal gears, the 269 is equipped with a mechanical safety clutch. If you hit a hidden metal hardware piece, jam a needle, or experience a severe bird-nest thread jam, the clutch instantly disengages the hook drive. This stops the machine from knocking itself out of timing, turning what would be a costly technician repair on other machines into a simple push-button reset.

5.Extreme Climbing & Crossing Seam Capacity: The 7269 features an alternating foot stroke that can be adjusted up to 10mm in height. This massive stroke height allows the presser feet to effortlessly climb over thick cross-seams, webbed straps, and intersecting layers of foam or plastic backing without stalling, shifting, or shortening the stitch length.

6. Legendary Build Quality & Resale Value: Machines explicitly manufactured under rigorous HighTex standards feature metallurgical casting and part tolerances that resist heat expansion and wear over decades of heavy production. Because of this reputation for absolute durability, vintage and modern 7269 units retain exceptionally high resale values on the secondhand leather craft market.

7. Precision Speed Control: Usually paired with a Kinedyne low-speed, high-torque servo motor, the system allows millimeter-by-millimeter stitch control. This ultra-slow, consistent pace is crucial for beginners or experts executing highly intricate artisan topstitching.

Low speed upholstery sewing machine servo motor

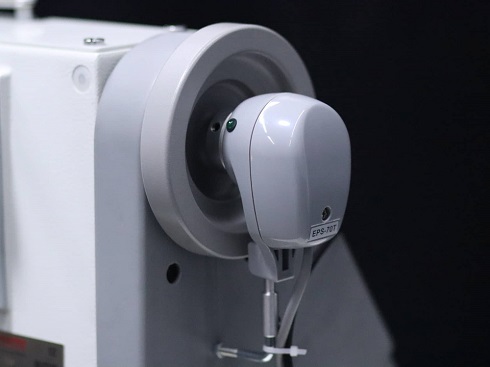

8. Precision needle positioner synchronizer: The robust needle positioner offers exceptional precision that allows you to achieve perfect stitching alignment, improving overall sewing quality and efficiency.

Precision needle positioner

Applications:

For upholstery, soft furnishings, home interiors, outdoor covers, car seat, bags, tents, auto, marine and aviation interiors and will sew canvas, acrylic, PVC, leather, technical textiles, heavy fabrics and much more.


Specifications:

Max. Sewing Speed:

1700 spm

Hook Type:

Double capacity

Min. Sewing Speed :

50 spm

Stitch type:

301

Needle System:

134-35 Size#110-140

Max. Thread size:

10/3

Stitch Length:

6mm

Bobbin size:

Outside Dia. 26mm, Height 11.3mm

Max. sewing thickness:

10mm

Presser foot alternating:

5mm

Length of arm:

260mm

Recommended motor:

Kinedyne HM-750SH servo motor

Packing size:

765x280x670MM, 45KGS

Tariff code (HS code):

8452290000
