733 Extra heavy duty lockstitch sewing machine +
large oscillating shuttle hook, alternating walking
presser foot, for lifting slings, safety harness etc.



7 Class Extra Heavy Duty Sewing Machines

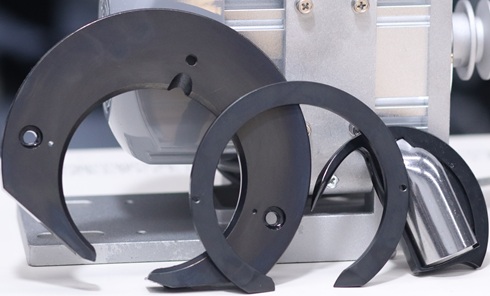

Hirose HSH-7-3 Shuttle Hook



733 bobbin

Your advantages:

1.This model in the HighTex range is one of the most heavy duty industrial sewing machines in production today;

2. The sewing machine head has a larger internal working area of 420mm, to the right of needle, & higher under arm clearance;

3. The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a

thread rating up-to size #0 - #00;

4. The presser foot has an ultra high lift of up to 32mm, allowing for a large range of extra heavy weight material or bulky items to be used;

5. A stitch length of up-to 15mm is possible (which in sewing machine terms, is big) and the machine has a reverse stitch lever as standard;

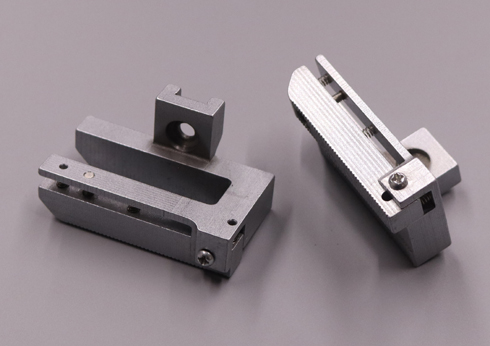

6. The walking foot action is driven and combines with the powerful bottom feed to produce a positive feeding motion for extra heavy use;

7. The innovated shuttle hook supplied with inside shaft that guarantee uniform thread tension, the new shuttle hook allow you to use pre-wound bobbins, and fits to other brand heavy duty industrial sewing machines such as Seiko SLH-2B-FH-1, Consew 733R5 etc.

Applications:

heavy duty lifting slings, safety harness, industrial boots, spiral sewn buffing wheels, sails, parachute harness, truck covers, tarps, tents, awnings, Japanese Tatami, spanzet, safety belts, industrial safety products, saddles, industrial webbing, military products, sterling rope, cord and book binding etc.


Specifications:

Max. Sewing Speed:

700 rpm

Hook Type:

Koban KSP7-31 or Hirose HSH-7-3

Presser Foot Lift:

32mm (standard), 36mm (Model 733BV)

Needle bar stroke:

56.7 mm

Needle System:

Schmetz 1000H (#280)

Max. Thread size

V693, T-700, 2000d X3

Stitch Length:

0-15mm (standard), 0-20mm (Model 733EX)

Bobbin:

Steel bobbin

Amount of alternating foot:

standard 6 mm

Thread take up lever:

Cam type

Working space:

420mm (length) x 255mm( High)

Bed size:

270mm (width) x 660mm (length)

Packing size:

1500X770X1450MM, 240KGS

Tariff code (HS code):

8452290000
