430HM Electronic bar tacking sewing machine with double
size bobbin, perfect for dog rope leash, seat belts, safety
harnesses, cargo nets & rigging straps

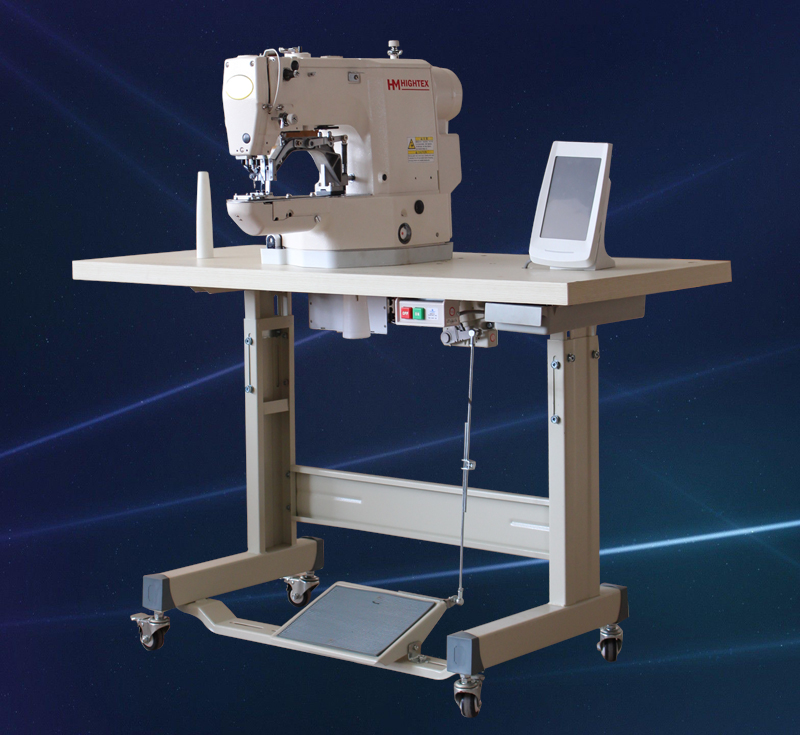

Brother KE-430HS bar tacking pattern sewing machine
Brother KE-430D Rope leash sewing machine

Brother KE-430HX bar tacking sewing machine

Brother KE-430F bar tacking machine

Your advantages:

1. The sewing hook & base containing the lower bobbin is twice the normal size, resulting in less bobbin changes, which is of particular use when using thicker than normal threads;

2. This high speed, automated bar-tacking machine generates a wide range of bartack patterns with no operator effort. Fully automated, the operator merely programs the desired tack into the computer and the machine will do the rest;

3. This unit is perfect for producing a Box X stitch and Bar-tacking seams seen on aircraft & auto seat belts, cargo nets, harnesses, rigging straps etc. Standard tacks, zig zag patterns, and many other patterns are already pre-programmed;

4. Optional & custom made pattern clamps can be fitted with-in as little as 10 minutes after removing the pre-fitted bartack clamps.

5. Economical operation with low power consumption. The direct drive mechanism greatly reduces power transmission losses, and a compact and energy-efficient motor has also been adopted;

6. HighTex offers a wide variety of labor saving devices to maximize productivity and quality.


Aircraft & auto seat belts, cargo nets, harnesses, rigging straps, heavy duty belting, rope dog collars, leashes, backpack, bag handles etc.

Sewing rope leash                                Sewing harness                                    Sewing seat belts


Max. Sewing Speed:

3000 rpm

Hook Type:

Double-capacity shuttle hook

Sewing Area:


Needle System:


Max. Thread size

Metric #15 (=V207, T-210, 630dx3)

Feed mechanism:

Intermittent feed, pulse motor drive

Bobbin size:

Outside Dia. 23.5mm, Height 13.5mm

Stitch Length:

0.05 - 12.7 mm

Tariff code (HS code):


Work Holder Lift :


NeedleBar Stroke:


Presser Foot Lift:


Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

200 patterns

Work clamp lifter:


Pattern Storage :

Internal & USB

Pattern Input :

Touch screen

Max. Number of Stitches:

20,000 per pattern

Drive Motor:

Limi-Servo (550 Watts)

Air pressure:

0.5 MPa 1.8 l/min


200-240 Volt 1 or 3 Phase

Thread trimmer system:

Horizontal engagement with fixed knife and movable knife

Lubrication system:

Replenishment with the oil braids from the oil tanks

Package (plywood case):

1210x790x1300MM, G.W: 180 KGS

Need to expand your production and maximize profits? Contact us at
