0797 Low cost walking foot industrial sewing machine

with bigger hook and automatic lubrication system

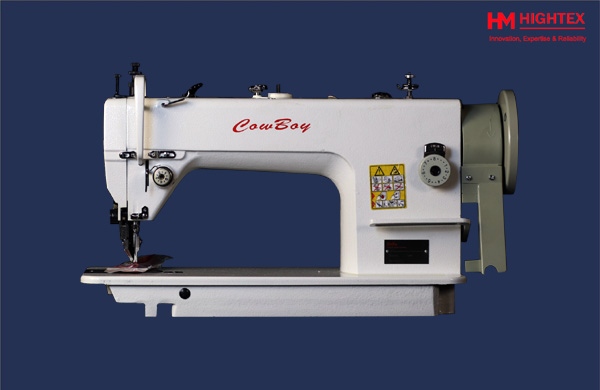

0797 heavy duty walking foot sewing machine
0797 Low cost leather sewing machine
Big "M" size Rotating Hook
0797 best price walking foot sewing machine Walking Foot (Alternating Feed)

Your advantages:

1. The 0797 walking sewing machine produces the highest quality equal distant stitch on all types of light to medium-heavy upholstery fabrics and leathers;

2. The hook is enlarged, and thus allows placing the bobbin with enlarged capacity. This solution allows for a less frequent thread exchange, which is especially important in technical sewing, where thicker threads are used;

3. This walking foot industrial sewing machine has automatic lubrication system which is more convenient and economical in comparison with manual lubrication system;

4. This heavy duty sewing machine is particularly user-friendly thanks to Kinedyne powerful servo motor. It allow you to sew very slowly, stitch by stitch, it makes sewing detailed work much easier;

5. Precise needle UP/DOWN positioning, it may be convenient to have the machine stop with the needle in "down" position for operations where sewing will continue after adjusting the item or have it stop in the "needle-up" position when the work will be removed after each operation;

6. A full array of special presser foot is avaialble for high productivity and perfect seam quality.


Designed for stitching up to various medium heavy weight items such as auto upholstery fabrics, leather, awnings, canvas, webbing, boat covers, tack, chaps, chinks, boots, book jackets, wallets,checkbook covers, belts, holsters, knife scabbards, day planners and many other leather and fabric items.


Max. Sewing Speed:

2000 rpm

Hook Type:

Big "M" size Rotating Hook

Presser Foot Lift:


Needle bar stroke:

37 mm

Needle System:

DP x 17 (#22)

Max. Thread size

Metric #20 (=V138=420d X 3)

Stitch Length:


Bobbin size:

Outside Dia. 26mm, Height 11.2mm

Working space:

260mm (length) x120mm( High)

Amount of alternating foot:

Standard 5.5 mm

Packing size:

580x245x520MM, 36KGS

Tariff code (HS code):
