733-30 Long arm extra heavy duty lockstitch machine
with large oscillating shuttle hook, alternating walking
presser foot, for tents, sails, parachutes and covers



long arm heavy duty sewing machine

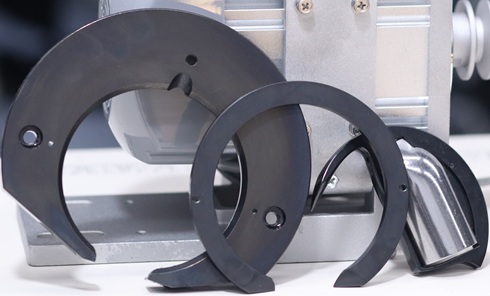

Hirose HSH-7-3 Shuttle Hook



733 bobbin

Your advantages:

1.This model in the HighTex range is one of the most heavy duty industrial sewing machines in production today;

2. The sewing machine head has a larger long arm internal working area of 760mm, to the right of needle, & higher under arm clearance;

3. The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a

thread rating up-to size #0 - #00;

4. The presser foot has an ultra high lift of up to 32mm, allowing for a large range of extra heavy weight material or bulky items to be used;

5. A stitch length of up-to 15mm is possible (which in sewing machine terms, is big) and the machine has a reverse stitch lever as standard;

6. The walking foot action is driven and combines with the powerful bottom feed to produce a positive feeding motion for extra heavy use;

7. The innovated shuttle hook supplied with inside shaft that guarantee uniform thread tension, and allow you to use pre-wound bobbins, and fits to other brand heavy duty industrial sewing machines such as Seiko SLH-2B-FH-1, Consew 733R5 etc.

Applications:

Ideal for making heavy duty webbing reinforcement in the middle of tents, tarpaulins, boat sails, parachutes, construction barriers, sheets, canopies, outdoor awnings, field covers. As well as manufacturing of safety and logging belts, cargo slings, buffing wheels, polishing wheels, space suits, wide webbing slings, marine protection products (silt curtains, baffles & pollution booms), military products, hot air balloon, umbrella, upholstered panels wall, upholstered Headboards


Specifications:

Max. Sewing Speed:

600 rpm

Hook Type:

Koban KSP7-31 or Hirose HSH-7-3

Presser Foot Lift:

32mm (by foot), 26mm (by hand)

Needle bar stroke:

56.7 mm

Needle System:

Schmetz 1000H (#280)

Max. Thread size

V693, T-700, 2000d X3

Stitch Length:

0-15mm

Bobbin:

Steel bobbin

Amount of alternating foot:

standard 6 mm

Thread take up lever:

Cam type

Working space:

760mm (length) x 255mm( High)

Bed size:

270mm (width) x 1000mm (length)

Packing size:

1770X670X1350MM, 390KGS

Tariff code (HS code):

8452290000
