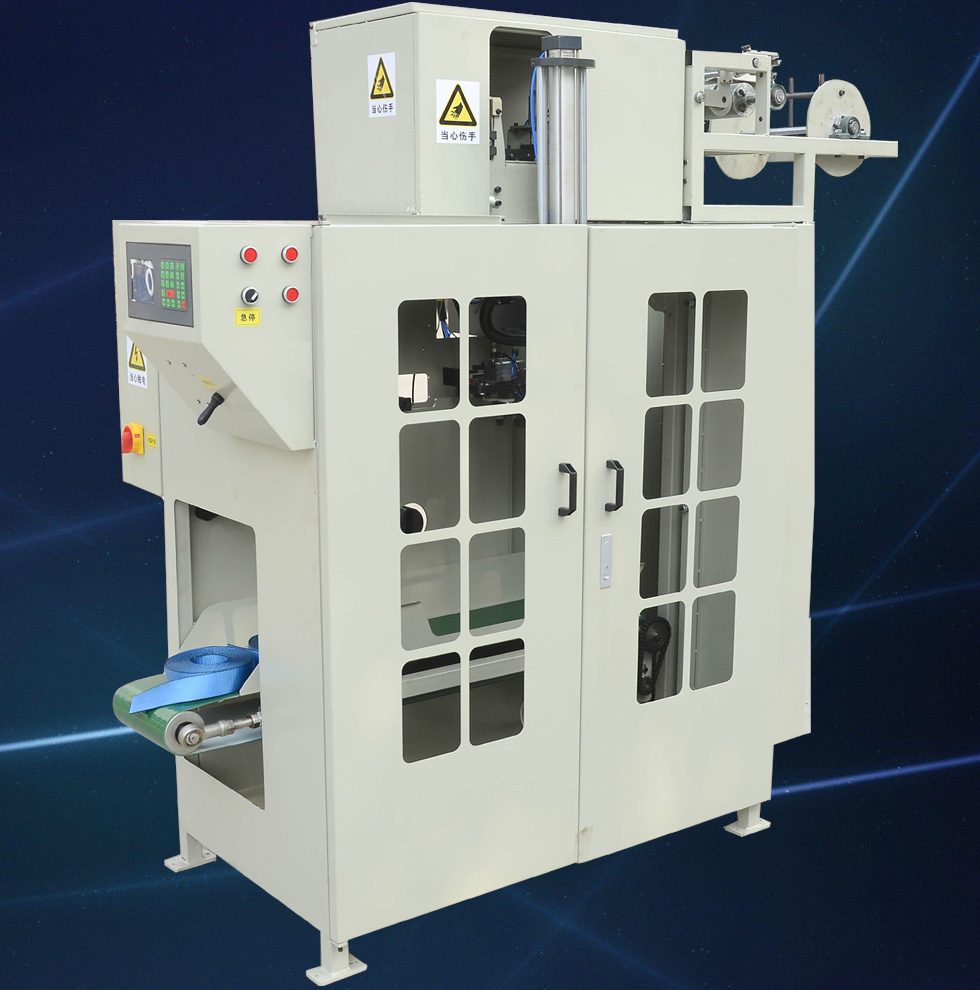

828-UV60-WG Automatic length cutting, measuring and

winding machine for cargo straps and harness webbing




Length cutting and winding machines

Your advantages:

1. Good price-performance ratio;

2. Direct labor costs can be saved over 60%;

3. Easy and fast setting and alteration due to product parameter storage and retrieval;

4. Slings and straps processing in one operation, no manual interim steps;

5. Clean cut edges and precise cutting length for simple further processing;

6. Use single-chip microcomputer, very easy to use;

7. Hightex proudly offers you a 7 year guarantee.

Standard equipment:

1. Sensor for material end identification, electronic length measurement;

2. Device for the reduction of material feed tension;

3. Adjustable gripper infeed for 1 inch, 2 inches and 4 inches webbing straps;

4. High adjustable feeding stand for best working condition;

5. High quality hot blade made of SKD11 Knife Steel;

6. Seven years of spare parts package.

Applications:

ratchet straps, lashing straps & tie down strap, safety harness, rescue belts, safety lanyard, military webbing straps and seat belts



Specifications:

Max. Working Speed:

Adjustable from 100 rpm to 1000 rpm

Width of hot knife:

160mm (standard)

Cutting length:

5 to 50 meters

Temperature of blade

0-600 C.

Cutting type:

Hot cutting

Material width:

1 inch, 2 inches and 4 inches etc.

Material thickness:

5mm thick webbing

Air pressure

5 to 8 bar

Voltage:

200-240V, 50-60HZ

Power:

4.0 kW

Package (plywood case):

2800x1300x1950mm, G.W: 790 KGS


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
