828B Automatic heat length cutting machine with double
hot blades for heavy duty lifting slings and lashing straps

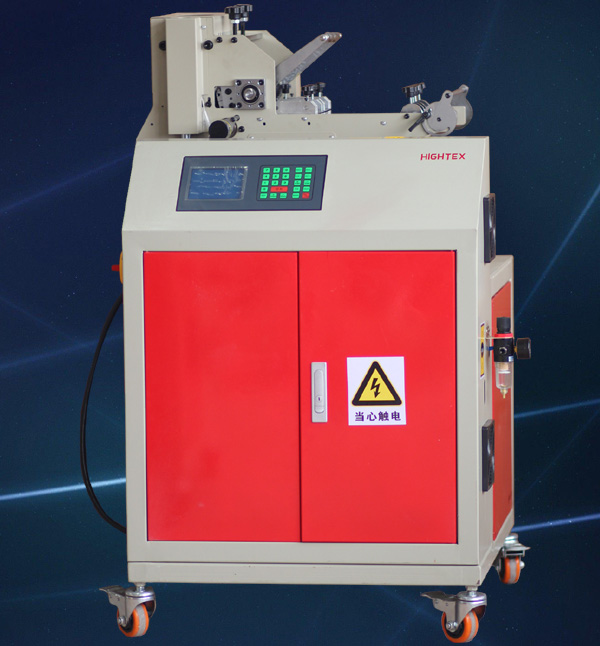

hot knife lifting slings cutting machine
Nylon webbing cutting machine

Hot cutting Nylon webbing

Hot cutting climbing ropes

Your advantages:

1. The temperature of heating blades can reach 600 Degree Celsius which can cut very thick synthetic webbing slings and ropes made of Nylon, Polyester and Polypropylene;

2. Equipped with upper & lower hot blades, melt the top & bottom side of webbing at same time, greatly improve cutting efficiency, and prevent from sharp burrs;

3. Its powerful and steady feeding system (top and bottom rollers) guarantees smooth feeding motion for extra heavy webbing straps and slings, and result in high precision cutting length;

4. Automation of any cutting processes, including automatic measuring, automatic cutting, automatic sealing, automatic marking etc;

5. Point-Marker is available as option (model 828BM) to mark the position for subsequent sewing of height safety harness, seat belts, Ratchet straps / tie down straps and webbing lifting slings;

6. Heavy duty construction ensures long working life, and very low maintenance costs (Only spare parts consumption: heating pipe and hot knife);

7. Automatic feed equipment is available as option to maximize productivity and quality.

Applications:

Heavy duty lifting slings, lifting straps, crane slings, rigging slings, army webbing, military equipment and other industrial lifting belts, ratchet straps, lashing straps & tie downs, load restraint equipment, cargo restraint ratchet strap, safety belts, fall protection equipment & safety harness, rescue belts, safety lanyard, military webbing straps, seat belts, climbing ropes, safety ropes


Specifications:

Max. cutting width:

200mm

Quantity of hot blades:

2 blades(Top and bottom hot knives)

Cutting length:

10mm to 50000mm

Material of hot knife:

SKD11 steel

Max.temperature of blade:

600 C

Counting system:

Independent digital encoder

Time delay:

2 to 30 second per cutting

Length of blade:

210mm

Blade driven method:

Pneumatic lift and down

Cutting tolerance:

+1mm / -1mm

PLC type:

Closed-loop Control Systems

Air pressure:

1Mpa

Power of heating tube:

2000W

Power:

200-240V/50-60HZ

Max. cutting thickness:

12mm of thick webbing made of Nylon, Polyester, Polypropylene

Tariff code (HS code):

8451500000

Optimal cutting thickness:

1-5 mm of thick webbing made of Nylon, Polyester, Polypropylene

Package (plywood case):

770 x 830 x 1320mm, G.W: 175 KGS
