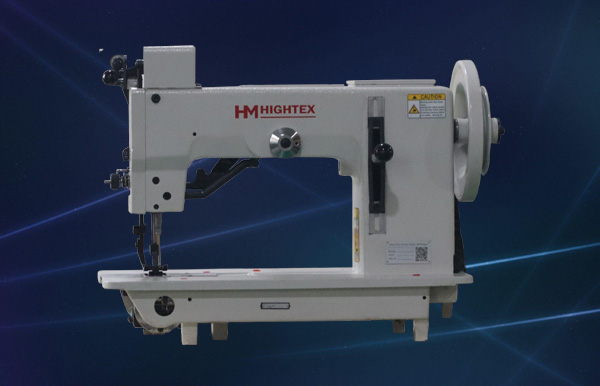

9204ZZ Extra heavy duty walking foot zig-zag
sewing machine with large Barrel shuttle hook
and 16mm wide zigzag stitches



Durkopp Adler 266
366 zigzag sail making machine
Large Barrel shuttle hook
Durkopp Adler 266-1 heavy duty zigzag
Walking foot mechanism

Your advantages:

1.Powerful walking foot mechanism insures the smooth feeding of hard-to-feed materials or multi-layered sections of materials to achieve consistent seam quality that is free from irregular stitch pitches;

2. The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing sails, tents and tarpaulins, using extra thick thread up to size V415, as well as thick decorative thread Tex 400 or 1300dx3 or 1.2mm braided thread;

3. A large Zigzag width of up-to 16mm to give nice decorative or functional stitching on a wide range of applications;

4. The basic mechanics (Shuttle hook, adjustments and times) is the same with Durkopp Adler 266 heavy duty zigzag, therefore it is easier for the manufacturers who already worked with Adler 266 type heavy duty zig-zag sewing machine;

6. Standard equipped with powerful, quiet and reliable energy saving servo motor (Kinedyne HM-750T) and needle position synchronizer allows you to stop the needle in up AND (not OR) down positions;

7. Pneumatic foot lift, pneumatic reverse stitch, needle cooler and zigzag binding device are available as option.

Typical Applications:

joining two pieces of carpets, mats and rugs together or overedging thick carpets, mats, wool blankets, cotton rugs, braided rugs, isolation blanket, attaching ropes to nets, joining nets together, and serging / finishing the edge of netting, such as fishing nets, sports nets, cargo nets, safety nets, agriculture nets, decorative stitch on furniture upholstering and leather goods etc.

Click here for video1                   Click here for video 2                   Click here for video 3

Specifications:

Max. Sewing Speed:

800 rpm

Hook Type:

KSP-204 Large Barrel shuttle hook

Presser Foot Lift:

15mm (by pneumatic foot lift)

Needle bar stroke:

56 mm

Needle System:

794 # 160 – 250

Max. Thread size

V415,Tex 400 or 1300dx3

Stitch Length:

0-10mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Max. zigzag width:

16mm

Take up stroke:

96 mm

Working space:

320mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

860x480x900MM, 90KGS

Tariff code (HS code):

8452290000
