828SMC Heavy duty hot knife webbing cutting machine

with marker (point marking) for subsequent sewing work

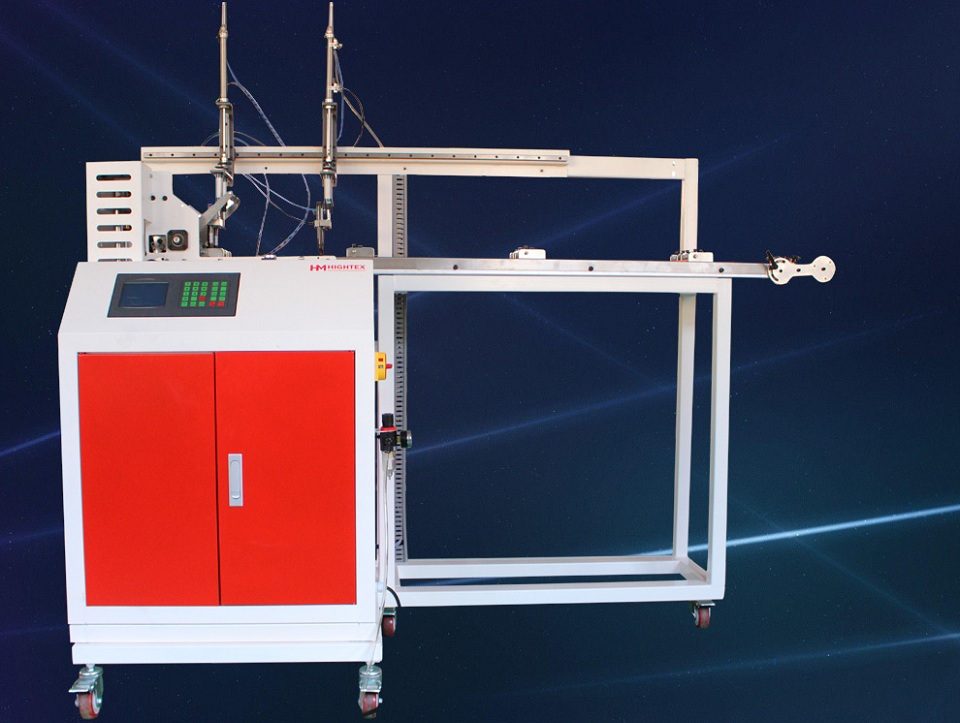

828SMC Automatic webbing cutting and marking machine

Your advantages:

1. Automatic length measuring safety webbing, tie down webbing, lifting webbing, recovery webbing and military webbing;

2. Automatic cutting and sealing the webbing in same time for simple future processing (sewing);

3. Automatically mark the positoin for subsequent sewing ;

4. Equipped with 2 blades, greatly improve cutting efficiency, and prevent from burrs. ;

5. with device for the reduction of material feed tension;

6. Use single-chip microcomputer, very easy to use;

7. Hightex proudly offers you a 3 years guarantee.

Applications:

Ratchet lashing straps & tie down strap, webbing lifting slings, safety harness, rescue belts, safety lanyard, military webbing straps and seat belts



Specifications:

Working Speed:

Adjustable from 100 rpm to 1000 rpm

Dia. of roller:

F40mm~F140mm

Cutting length:

6 to 20 meters

Blade heating

0-500 C.

Webbing width:

50mm~100mm (25mm requires different strapping machine )

Cutting type:

Hot cutting

Cutting thickness:

1mm-6mm

Air pressure

6Mpa

Voltage:

200-240V, 50-60HZ

Power:

12KW

Machine size:

7250mm(L) x1900mm (W) x 2500mm (H), G.W: 1560 KGS

Packing size:

2510x1170x1940mm, 1966KGS


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
