828P Pet webbing oblique cutting machine for dog harness

collar and leash (beveled cutting edge prevent sharp edge)

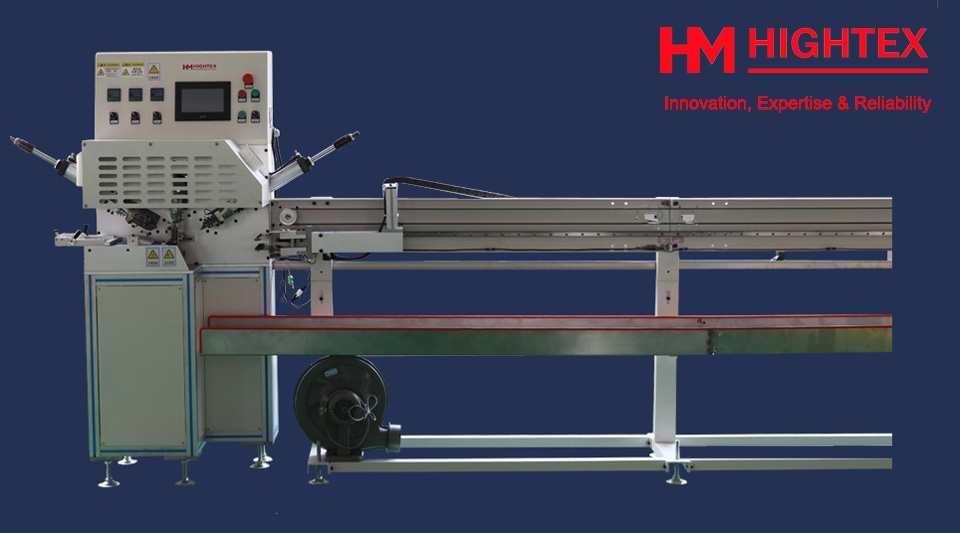

828P Pet webbing oblique cutting machine

Your advantages:

1. Automatic length measuring pet webbing for the manufacturing of dog harness collar and leash;

2. Automatic cutting and sealing the webbing in same time for simple future processing (sewing);

3. The unique oblique cut (beveled cutting edge )prevent sharp edge that may hurt the skin of pets;

4. Able to cut 4 webbing straps at same time, greatly improve cutting efficiency;

5. With 3 optional cutting modes for vertical cutting and oblique cutting;

6. Use single-chip microcomputer, very easy to use;

7. Automatic stop when materials run out.

Applications:

This Slant Angle Cutter is designed for the manufacturing of dog harness collar and leash. This hot knife oblique cutter also suitable for personal protective equipment, luggage, plush toy, sports equipment and other industries that require beveled cutting edge to protect skin.



Specifications:

Working Speed:

About 20 cuts per miniute

Dia. of roller:

F40mm~F140mm

Max. cutting length:

2500MM (standard), custom made for longer

Blade heating

0-500 C.

Blade width:

150mm

Cutting type:

Hot knife cutting

Cutting thickness:

1mm-3mm

Air pressure

6Mpa

Voltage:

200-240V, 50-60HZ

Power:

3KW

Packing size:

1280x1900x590MM, 1210x1760x550MM, 345KGS


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
