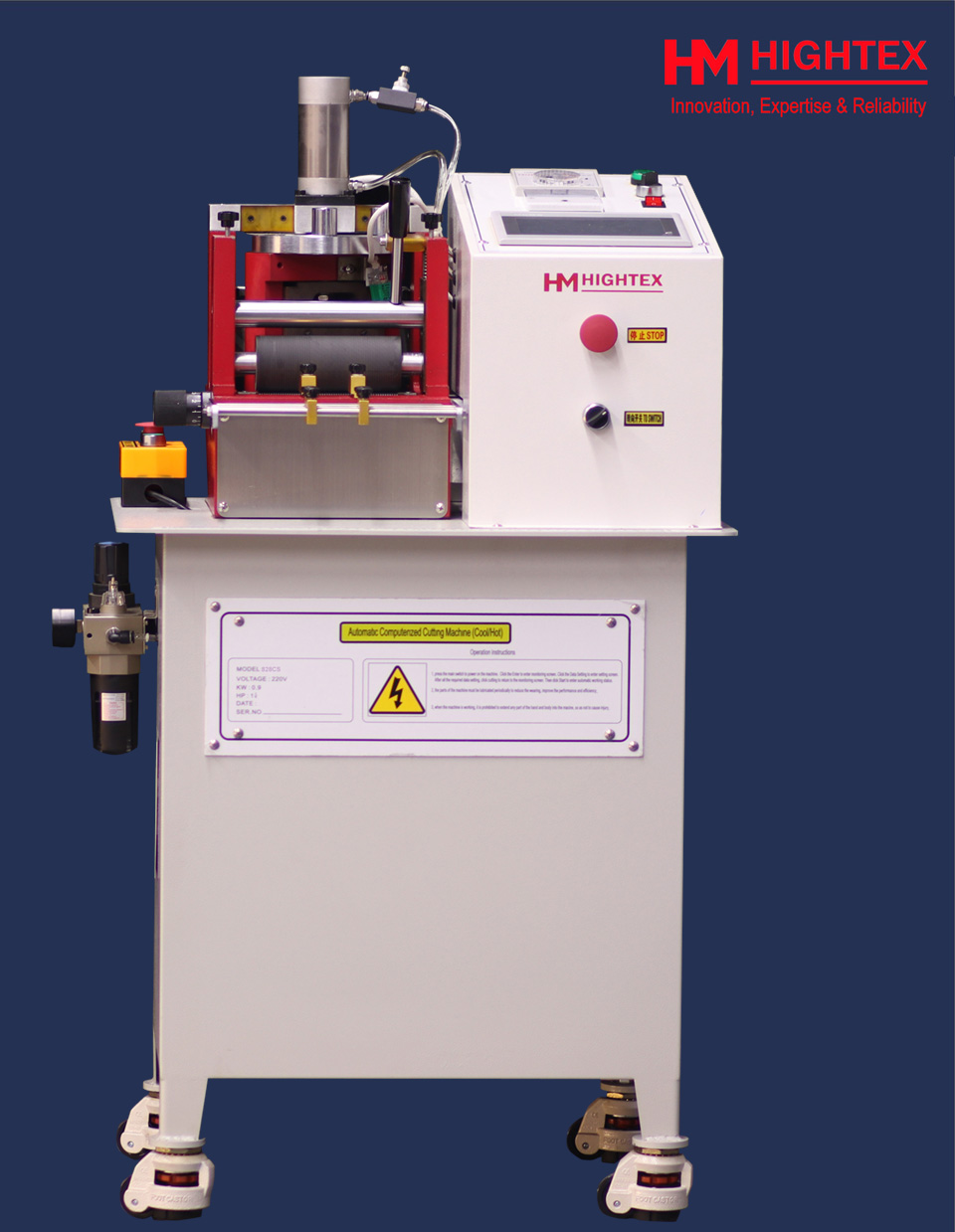

828CS Automatic webbing angle cutting machine, heavy duty webbing angle cutter

828CS Automatic webbing angle cutting machine (heavy duty webbing angle cutter)

Your advantages:

1. Automatic length measuring webbing for the manufacturing of safety harness and military equipment etc;

2. Automatic cutting and sealing the webbing in same time for simple future processing (sewing);

3. Easy to adjustt the cutting angle from 0 to 45 degree;

4. Easy to set dwell time according to your material, achieve optimal cutting results;

5. With 3 optional cutting modes for vertical cutting and oblique cutting;

6. Automatic stop when materials run out;

7. This heavy duty webbing angle cutter comes with affordable price and extremely low maintenance costs.

Applications:

safety harness and personal protective equipment, military gear, dog harness collar and leash, luggage, plush toy, sports equipment and other industries that require angle cutting.

Specifications:

Knife stroke:

30mm

Cutting speed :

1-100/Miniute

Max.cutting width :

100mm

Cutting length :

1-999mm

Cutting angle :

0-45Degree

Voltage:

200-240V/50-60Hz

Packing size:

600X750X1200MM, 165KGS

Max. blade temperature:

600 Degree



Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
