828ACM Heavy Duty Automatic Webbing & Marking Machine

---One of the best quality webbing cutter with Point-Marking




828ACM Automatic Webbing Marking and Cutting Machine
WEBBING POINT-MARKING CUTTER
Upper and lower hot knives

Heavy duty webbing heat cutter with marking
Programmable Point marking

Webbing cutting and marking machine
Touch screen operation

Your advantages:

1. This heavy duty webbing cutting machine is with upper and lower knives. These hot blades are made of high-quality high-speed steel (heating capability up to 600 ° C is provided);

2. This cutter has a maximum cutting width of 200mm, allowing the potential for a wide range of materials to be cut. Materials can also be cut parallel to each other to increase productivity;

3. Because hot knife melts the end of tape, cutting is sealed neatly without fraying, and because the upper knife is fixed and only the knife plate moves up and down, meaning the machine is very durable and long-lasting;

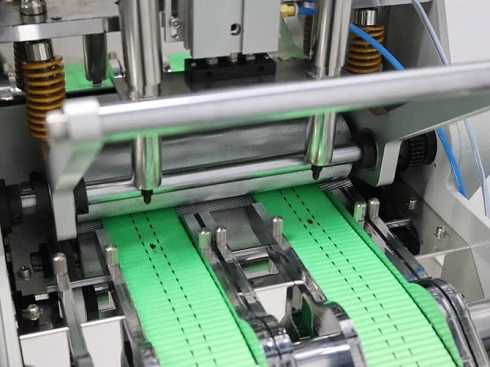

4. It is possible to turn on the function of applying dot markings with a marker - Marks webbing where the operator is required to sew;

5. This automatic webbing cutting machine provides dwell time to ensure the thicker material cuts all the way through for a perfect seal;

6. The knife has a special shape for better melting on both sides;

7. This automated webbing cutting and marking machine using touch screen which is easier to navigate and provide clear and intuitive settings;

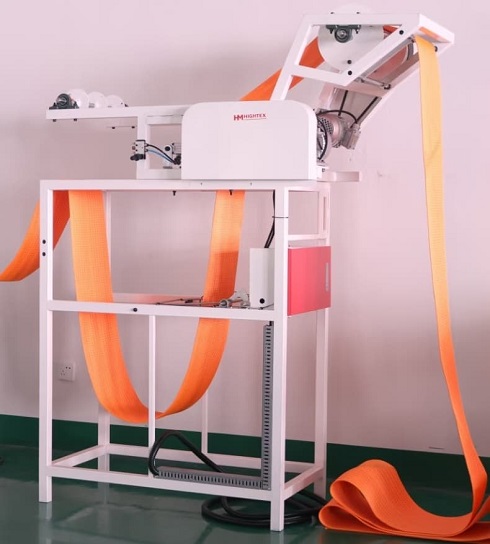

8. If necessary, it is possible to turn on the device for preliminary feeding of the material, which ensures the stability of the tape tension at the moment of pulling it through the cutting machine, minimizing the possibility of jerking.

Applications:

heavy duty webbing lifting slings, lifting straps, crane slings, rigging slings and other industrial lifting belts, ratchet straps, lashing straps, safety belts, rescue belts, safety lanyard, safety rope, climbing rope, dog rope, marine rope, fall protection equipment & safety harness, seat belts and military webbing straps


Specifications:

Max. cutting width:

200mm

Quantity of hot blades:

2 blades(Top and bottom hot knives)

Cutting length:

10mm to 50000mm

Material of hot knife:

High speed steel

Max.temperature of blade:

600 C

Counting system:

Independent digital encoder

Time delay:

2 to 30 second per cutting

Length of blade:

230mm

Blade driven method:

Pneumatic lift and down

Cutting tolerance:

+2mm / -2mm

PLC type:

Closed-loop Control Systems

Air pressure:

1Mpa

Power of heating tube:

4000W

Power:

200-240V/50-60HZ

Max. marking point:

10

Tariff code (HS code):

8451500000

Optimal sewing thickness:

1-5 mm of thick webbing made of Nylon, Polyester, Polypropylene

Package (plywood case):

700X570X1340mm, G.W: 148KGS
