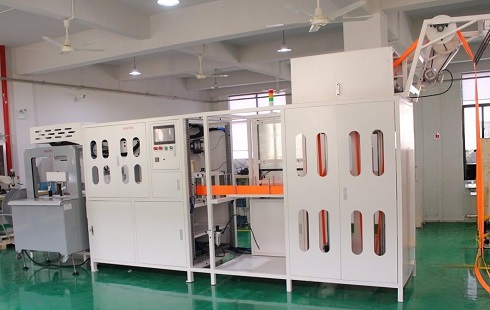

828-UV60-WPS Fully automatic webbing cutting, measuring,

winding and strapping machine for cargo lashing straps




Length cutting and winding machines

High-quality, durable machinery is essential to maximize production output and profit margins. When purchasing automatic cutting equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships.At Hightex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility.

For our fully automatic webbing cutting machines, we dedicate several weeks to assembling and testing each unit, ensuring every detail is flawless. This eliminates setup hassles, ensuring your machine is ready for immediate operation upon arrival. Furthermore, these heavy-duty hot knife webbing cutters are manufactured in accordance with European safety standards (CE) to ensure safe operation.

Because we refuse to cut corners on quality, our fully automated webbing cutting machines take time to prepare. We appreciate your patience as we build the perfect machine for your business.

Your advantages:

1. Automatic length measuring;

2. Automatic cutting and sealing the webbing in same time for simple future processing (sewing);

3. Automatic winding;

4. Automatic strapping;

5. with device for the reduction of material feed tension;

6. Use single-chip microcomputer, very easy to use;

7. Hightex proudly offers you a 7 years guarantee.

Applications:

Cargo lashing straps & tie down strap, safety harness, rescue belts, safety lanyard, military webbing straps and seat belts


Click here for video 1                               Click here for video 2

Specifications:

Working Speed:

Adjustable from 100 rpm to 1000 rpm

Dia. of roller:

F40mm~F140mm

Cutting length:

6 to 20 meters

Blade heating

0-500 C.

Webbing width:

50mm~100mm (25mm requires different strapping machine )

Cutting type:

Hot cutting

Cutting thickness:

1mm-6mm

Air pressure

6Mpa

Voltage:

200-240V, 50-60HZ

Power:

12KW

Machine size:

7250mm(L) x1900mm (W) x 2500mm (H), G.W: 1560 KGS

Packing size:

2510x1170x1940mm, G.W: 908 KGS, 1780x620x1100mm, G.W: 112 KGS, 660x1290x1540mm, G.W: 199 KGS, 660x1290x1540mm, G.W: 199 KGS, 2200x1240x2340mm, G.W: 548 KGS, total 5 cases, 15.9 Cubic Meter, 1966KGS


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
