CB8116PRO hand cranked or motorized leather splitter for

splitting and leveling vegetable tanned leather

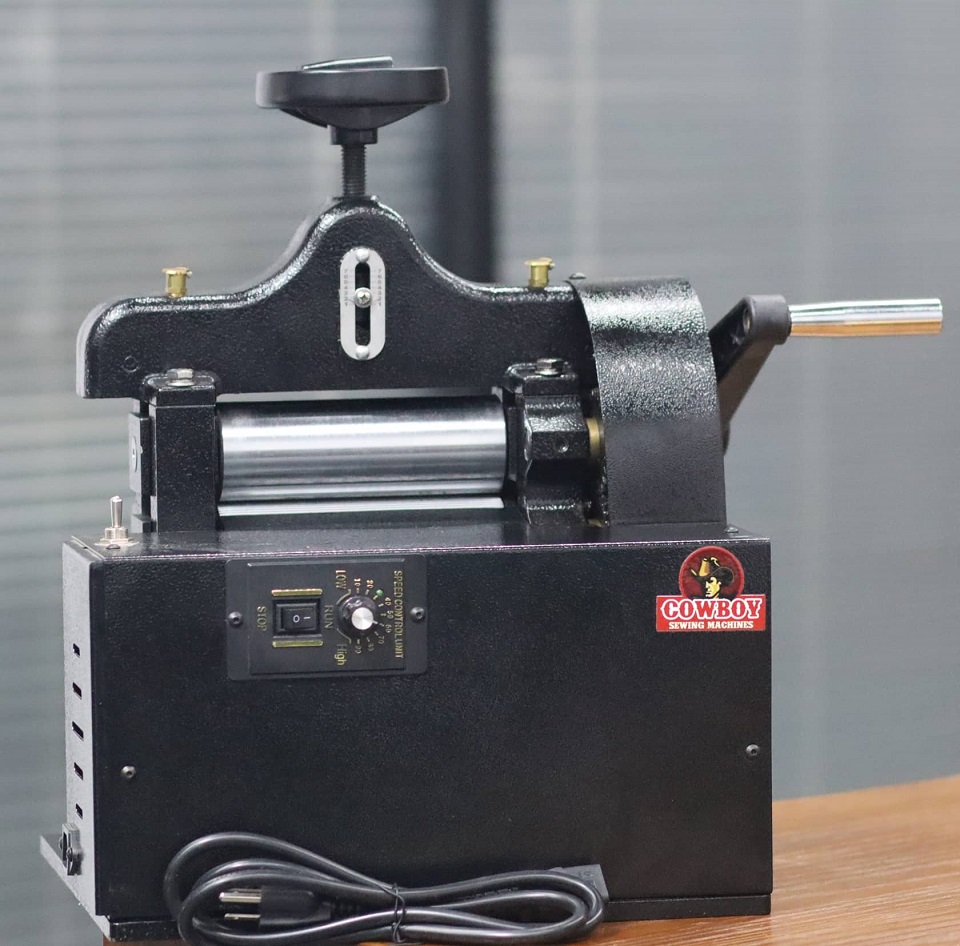

8116PRO hand cranked or motorized leather splitter

Your advantages:

1. This leather crafting equipoment can be hand cranked or leather splitter for optimal control;

2. With this hand driven leather belt skiving machine, you can easily get any desired splicing length at end of belts; With an adjustment lever to accommodate almost any leather thickness (3 oz. - 14 oz.);

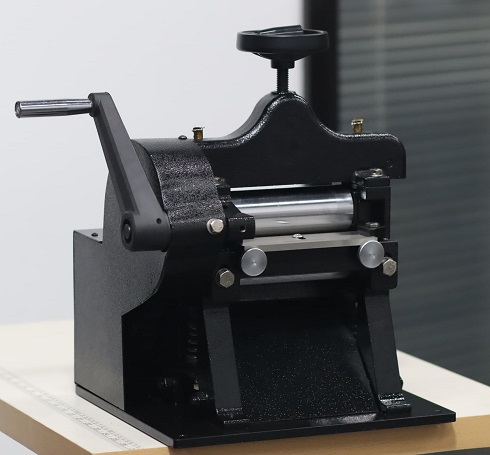

3. The gear driven bottom feeder and long crank handle affords the user the highest degree of mechanical advantage when splitting thick and tough leather hides, belts, and soles of shoes;

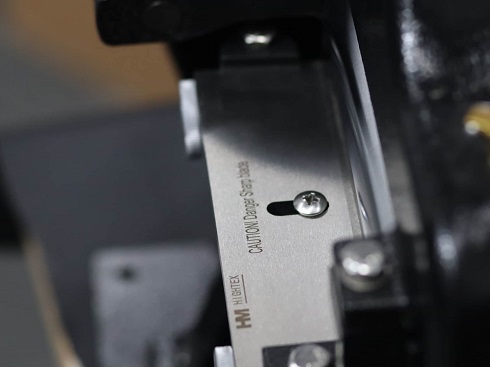

4. This motorized leather splitting machine uses D-2 steel blade which has extremely high wear and abrasion resistant properties;

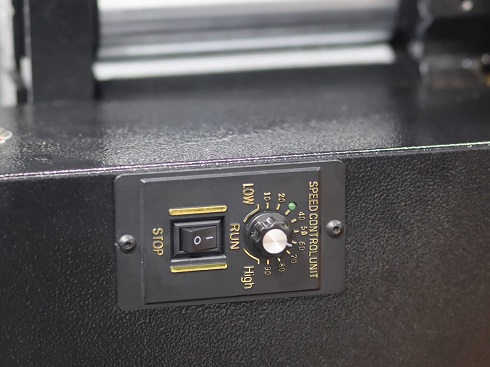

5. This motorized leather splitter equipped with speed adjustable electric motor (with reverse);

6. Portable design, using 4 screw holes for attaching to any workbench;

7. It is an affordable simple leather splitter for belts maker, leather bag maker, saddle maker, sheath and holster maker, harness maker or leather crafter.

Applications:

Leather belt strap, leather bags, shoes, gun holsters, knife sheaths, leather harness, saddles, custom handbags, horse tack, bridles, bracelets, wallets, costumes, beauty cases, makeup case, phone case, car key cover and other leather accessories



Specifications:

Length of blade:

100mm

Optimal splitting width:

10mm - 80mm

Minimum skiving thicknes:

1mm

Leather type:

Vegetable Tanned Leather and Veg Tan Hides (NOT for soft upholstery leather)

Material of blade:

High speed steel (HSS)

Packing size (Plywood case):

400x350x485mm, G.W: 49 KGS


Are you ready for a Crafting Revolution? Ready to be Inspired? Contact us at info@automatic-sewing.com
