718-30/728-30 Extra heavy duty, 30 inch long arm
compound feed and walking foot sewing machine
for tents,parachutes, covers and upholstery

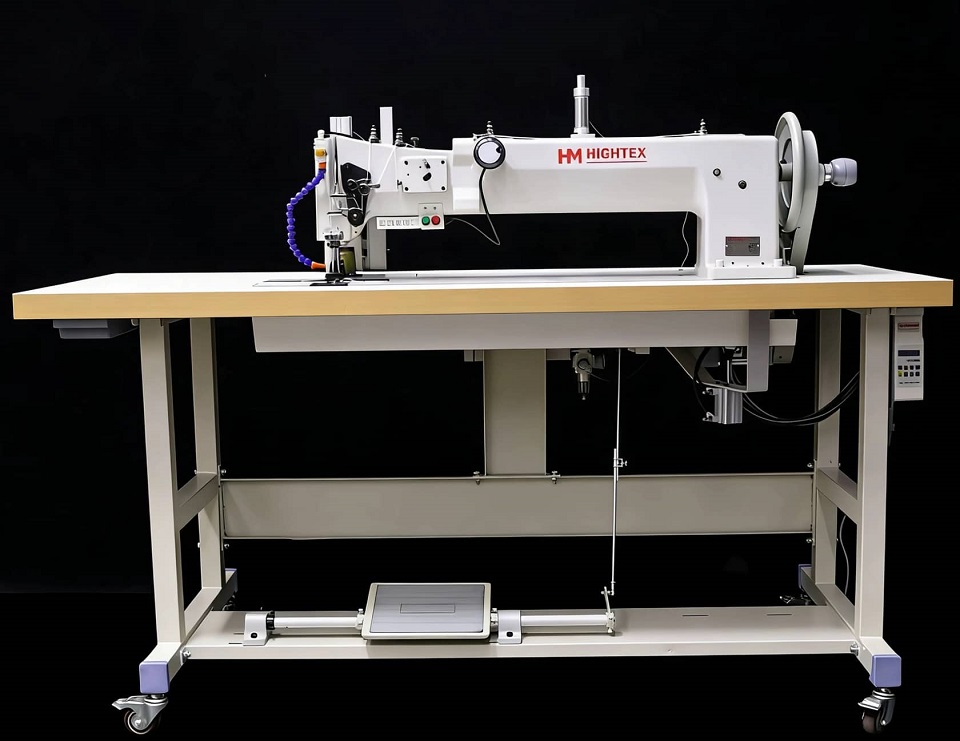

728-30 Long arm double needle heavy duty sewing machine
728-30 Extra large Vertical Axis rotary hook

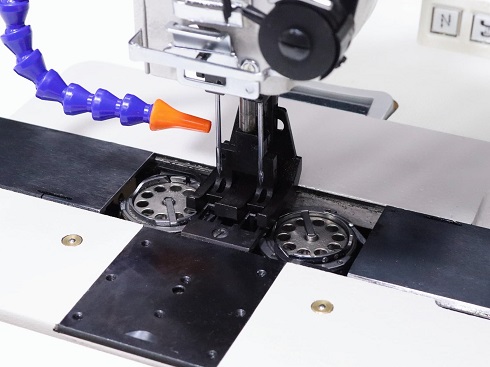

Extra large Vertical Axis hook

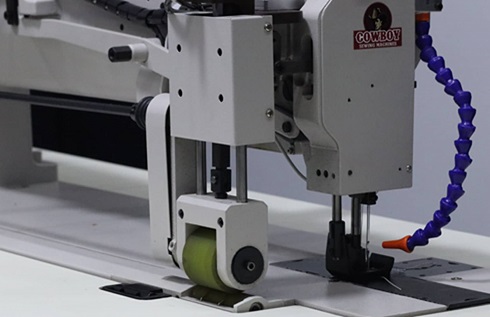

Tents sewing machine puller
Top and bottom feed puller

Your advantages:

1. The long arm flat bed allows up-to 760mm* (30") clearance to the right of the needle, which is approximately Three times the length of a standard sewing machine arm, and has a high under arm clearance of 145mm;

2. It features a triple feeding action by way of: bottom feed, needle feed & walking foot top feed and is fitted with 2x extra large vertical axis hooks for use with very thick sewing threads (for both decorative stitches and safety seams);

3. A high foot lift of up-to 23mm allows many different types of heavy or bulky items to be stitched;

4. A safety clutch is fitted to help prevent damage to the hook, bevel gears and other important parts, should the machine become jammed or over-loaded;

5. Model also features a back mounted puller feed system with bottom driven roller for extra feeding power and additional enhancements including: high torque electronic needle positing motor, air assisted reverse device, air operated auto foot lifter, air operated auto puller lifter, Knuckle quick reverse system and electronic stitch count box with inching control;

6. This is an excellent replacement of other expensive extra heavy duty long arm compound feed sewing machines, include Seiko JW-28BL-30, Juki LG-158, Consew 745R, Singer 145W etc.

7. All 718-30 and 728-30 long arm industrial sewing machines are completely installed, thoroughly tested and serviced before delivery, ready to sew out of box.

Applications:

For sewing extra heavy weight materials such as canvas, vinyl, leather, synthetics, and various coated, laminated and rubberized fabrics.
Suitable for sewing such as tents, parachutes, sails, tarps, awnings, truck covers, leather sofas and other furniture upholstery, field covers, sleeping bags, sheets, marine protection products (silt curtains, baffles & pollution booms),military & tactical Gear, shade structures and heavy bulky products.


Specifications:

Max. Sewing Speed:

1200 rpm

Hook Type:

Extra large Vertical Axis Hook

Presser Foot Lift:

23mm

Needle bar stroke:

46.8 mm

Needle System:

794, DY x 3 (#24)

Max. Thread size

Upper #8 - #0, lower #8

Stitch Length:

0-10mm

Bobbin size:

Outside Dia. 37mm, Height 13mm

Needle gauge:

6.35mm to 50.8mm

Thread take up lever:

Slide type

Lubrication:

Semi-automatic lubrication

Presser foot alternating:

6 mm - 9 mm (standard 6 mm)

Working space:

762mm (L) x 145mm( H)

Recommended motor:

200-240V, 750W AC Servo motor

Packing size:

1830x800x1330MM, 285KGS

Tariff code (HS code):

845229000



Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
