Left hook is for 72600PLK, right is normal hook
|
Your advantages:
1. Upto 1000 rpm high sewing speed guarantees high efficiency;
2. The extra large rotary hook and bobbin capacity (6 times bigger than normal) reduces the number of bobbin changes even for thick thread;
3. Can easily sew 2-4 ply synthetic webbing (3 mm of each together);
4.The advance automatic thread trimmer is special designed for cutting thick thread;
5. The low voltage closed-loop electronic control system ensure precise stitch quality;
6. HighTex offers a wide variety of labor saving devices to maximize productivity and quality;

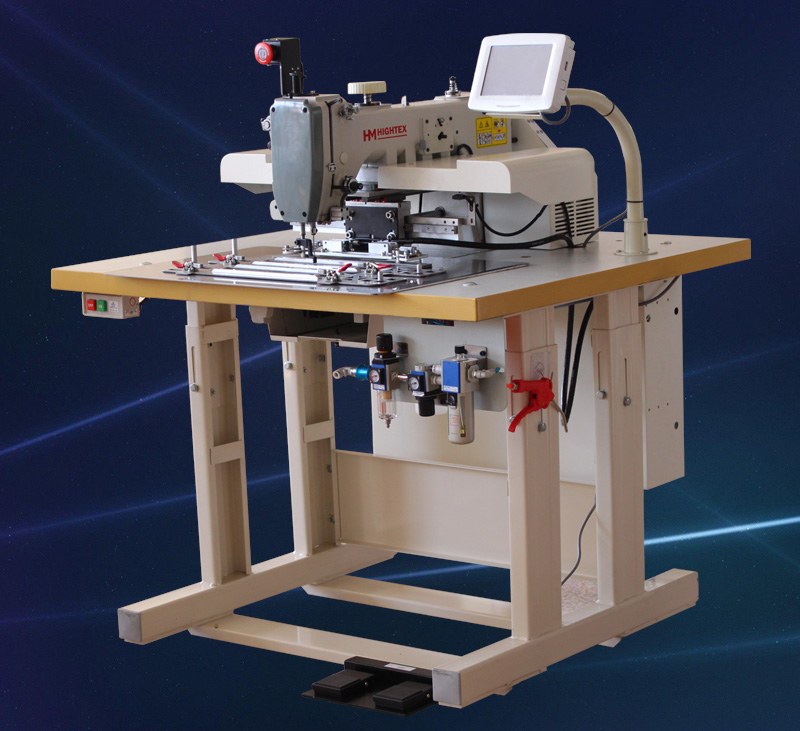

7. These heavy duty programmable electronic pattern sewing machines are completely assembled and delivered by strong plywood case (Ready To Sew out of box)
Applications:
Cargo slings and webbing harness, webbing loops, lifting loop (lifting belts) of Big bags (FIBC), container bag handle loops, soft loop straps and endless slings, soft loop tie down straps, ratchet straps, lifting slings, spanzet, seat belts and safety harness, parachutes harness, backpack straps, rescue belts, vest, military equipment, sports goods and fall protection equipment.
Specifications: |
Max. Sewing Speed: |
1000 RPM |
Hook Type: |
6 time Large horizontal axis hook |
Sewing Area: |
72600PLK: 300x200mm, 72600PLK/S: 300x100mm |
Needle System: |
Schmetz DDx1 (#24) , 328 (#180) |
Max. Thread size |
Metric #8, V346, T-350, 1100Dx3 |
Optimal sewing thickness: |
4-12mm thick synthetic webbing(Nylon, Polyester etc.) |
Bobbin size: |
Outside Dia. 34.5mm, Height 15.1mm |
Stitch Length: |
0.1~12.7mm |
Control system: |
Closed-Loop Control |
Work Holder Lift : |
20mm |
NeedleBar Stroke: |
50.8mm |
Presser Foot Lift: |
15mm |
Presser foot stroke: |
4 mm to 10 mm |
Max. QTY of Patterns: |
520 patterns |
Needle cooler: |
Cold air |
Pattern Storage : |
Internal Memory USB |
Pattern Input : |
Touch Screen |
Max. Number of Stitches: |
8000 per pattern |
Drive Motor: |
Limi-Servo (750 Watts) |
Air pressure: |
0.6 MPa |
Power: |
200-240 Volt 1 or 3 Phase |
Thread trimmer system: |
Horizontal engagement with fixed knife and movable knife |
Feeding System: |
Intermittent |
Package (plywood case): |
1360x1220x1220MM, 270 KGS |
Tariff code (HS code): |
8452219000 |
|
|
