Large Barrel shuttle hook

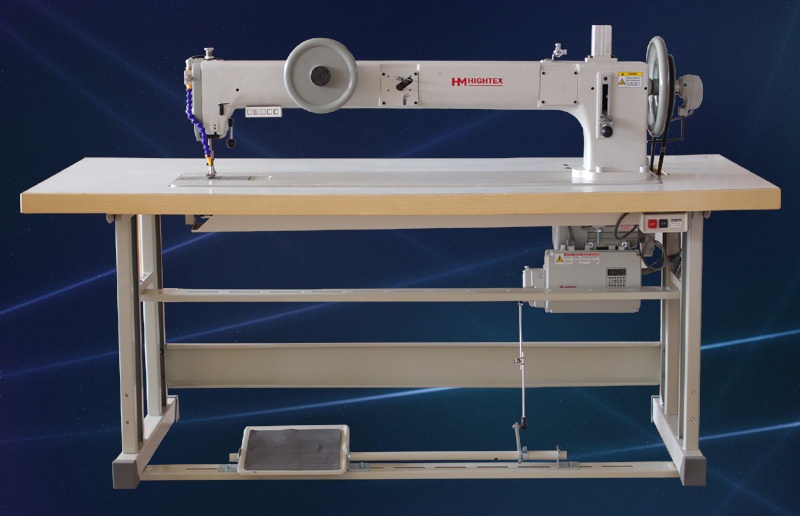

960mm super large clearance room under the arm
|
Your advantages:
1. The sewing machine arm has been extended (complete casting, not a cut and piece extended arm) to give approximately 960mm clearance, which is very useful when sewing larger items, for example: parachutes, sails, tents, covers et;
2. Its powerful and steady feeding action enables you to sew multiple ply of heavy weight material with a true and even stitch;
3. The presser foot has an extra high lift and can go up to 23mm, allowing for a large range of extra heavy weight material or bulky items to be used;
4. A stitch length of up-to 11mm is possible (which in sewing machine terms, is big) and the machine has a reverse stitch lever as standard;
5. The special extra large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);
6. This is the first generation of HighTex (CowBoy) heavy duty industrial sewing machine with over 15 years of production experience and has been sold into over 30 countries, included United States and Europe.
Applications:
sails, parachutes, tents, sheets, mattress, space suits, textile webbing slings, tarpaulins, canopies, outdoor awnings, sleeping bags, military products, marine and furniture upholstery, automobile upholstery, industrial safety products, hot air balloon, umbrella, shade sails, backpacks, field covers, and heavy bulky products.
Specifications: |
Max. Sewing Speed: |
800 rpm |
Hook Type: |
HAD-204 Barrel Shuttle Hook |
Presser Foot Lift: |
23mm |
Needle bar stroke: |
56 mm |
Needle System: |
794 (DYx3) needle,-#230 |
Max. Thread size |
#7, V415, 1300dX3, T-400 |
Stitch Length: |
0-11mm |
Bobbin size: |
Outside Dia. 24mm, Height 30.5mm |
Take up stroke: |
96 mm |
Tariff code (HS code): |
8452290000 |
Working space: |
960mm (length) x190mm( High) |
Motor: |
200-240V, 750W AC Servo motor |
Packing size: |
1830X750X1320MM |
Weight: |
380KGS |
|
|
|
