cowboysew

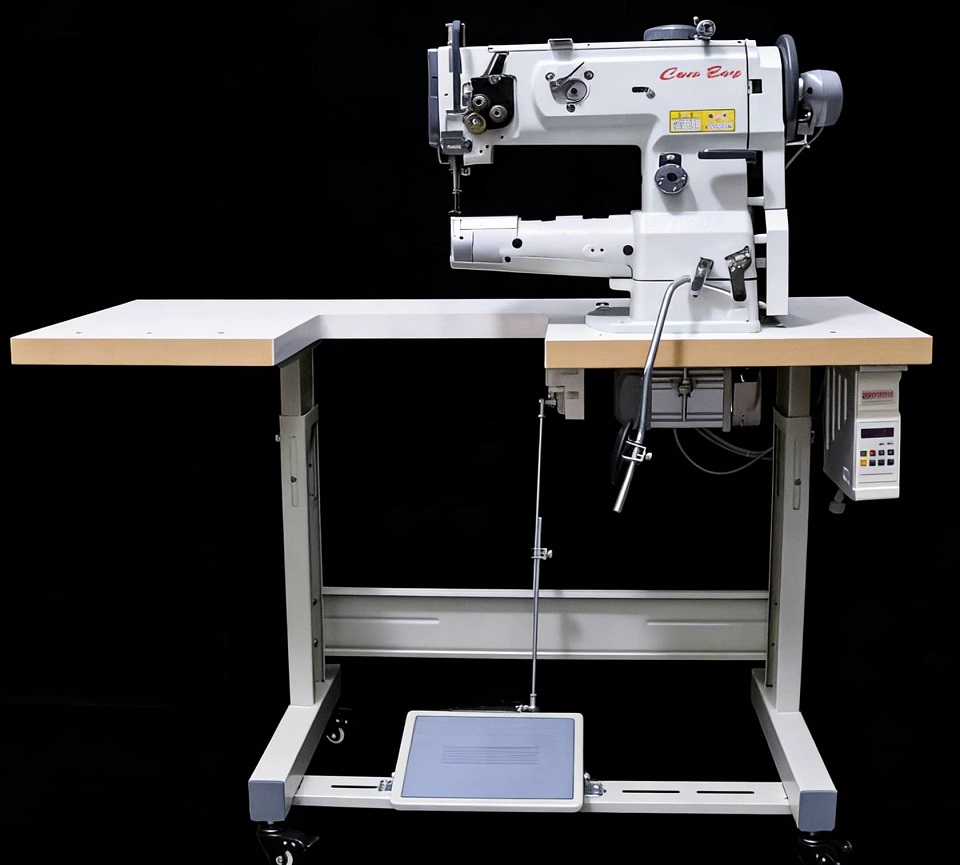

CB6900 Medium to heavy duty cylinder bed compound feed
leather sewing machine for handbags, shoes, belts, carpets
furniture upholstery and leather crafts



Best sewing machine for making leather bags
Best leather bag stitching machine
Double-tension mechanism

Best leather bag sewing machine
Makes adjusting works easier

Your advantages:

1. With its larger needle bar stroke, lift of the presser foot, and newly adopted double-tension mechanism, the machine sews beautifully with thick threads (low count thread) and at higher thread tensions;

2. The newly developed mode of highly rigid rectangular feed guarantees outstanding feed performance. The ratio between the alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes;

3. The slimmed-down throat plate easily responds to the sewing of small tubular articles with diameters as small as 72mm. This enhances the machine's ability to smoothly sew not only bags and shoes, but also small articles such as wallets;

4. Compared with the elliptical feed, the rectangular feed helps reduce gathered stitches;

5. The underside of the top end of the cylinder-bed is provided with an easy-to-remove cover. This promises easy cleaning of thread wastes;

6. The machine's full-open-type top design makes adjusting works easier;

7. A walking foot mechanism is built into the machine arm to prevent oil from scattering;

8. The vertical stroke of the walking foot and presser foot can be easily set and changed;

9. A full array of special sewing equipment are available for high productivity and perfect seam quality.

Applications:

leather bags, shoes, carpet slippers, car mats, pouches, belts, leather craft articles, wallets, luggage (especially for edge seam on luggage), suitcase, phone cases, football, knife sheath, gun holsters, chaps, chinks, bridles, harness, billfold, sofas, cushion, furniture upholstery and wherever you need a cylinder arm shape.


Specifications:

Max. Sewing Speed:

2500 rpm

Hook Type:

2 times large Vertical-axis Hook

Presser Foot Lift:

16mm

Needle bar stroke:

74.5 mm

Needle System:

DP×17 / 135×17 Nm 125-180

Max. Thread size

#10 (=T-270, V277, 840dx3)

Stitch Length:

0-6mm

Bobbin size:

Outside Dia. 25.5mm, Height 10mm

Max. top feed stroke:

7 mm

Balance wheel Dia.:

80mm

Working space:

260mm (length) x110mm( High)

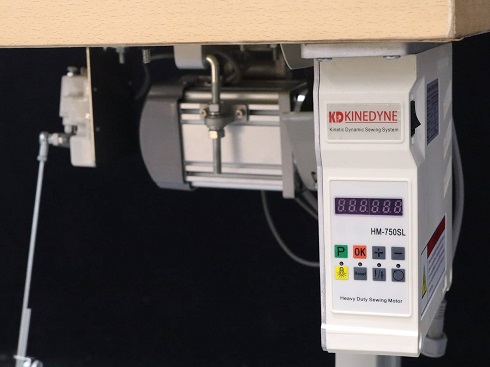

Recommended motor:

Minimum 0.55 kW

Packing size:

735x340x640MM, 52KGS

Tariff code (HS code):

8452290000
