680HM Heavy Duty Electronic Bar Tacker / Box X Pattern
Sewing Machine with 60mm x 80mm Sewing Field and BIG
Bobbin, Perfect for Dog Harness Manufacturers

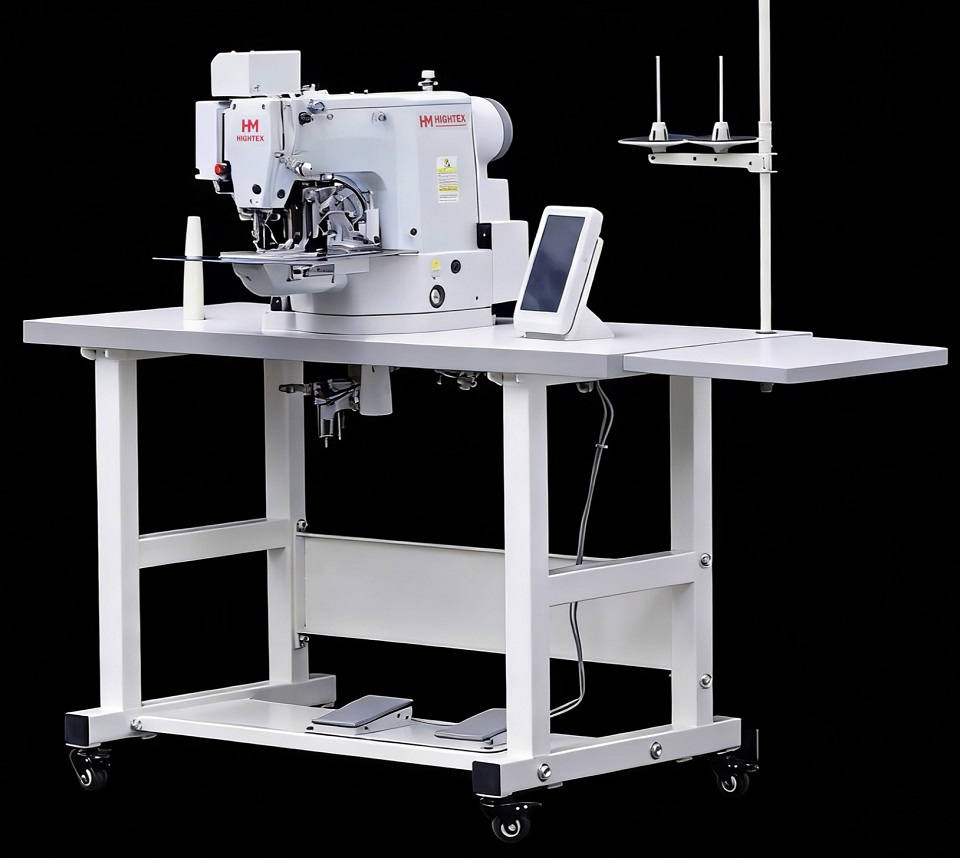

Best affordable heavy duty electronic bar tacking machine
680 heavy duty bar tacker
Programmable pressure foot height
Brother KE-430F bar tacking machine

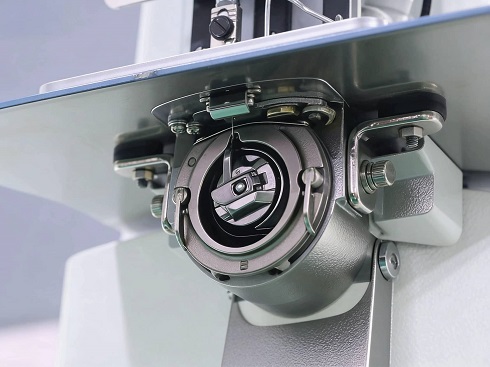

Double-capacity shuttle hook

Your advantages:

1. Up to 60x80mm sewing area, widely used for sewing box X patterns on a variety of materials from knits to denim to multiple layers of webbing;

2. This particular machine has a BIG hook and bobbin factory-installed giving you more than double bobbin thread capacity then its competing models;

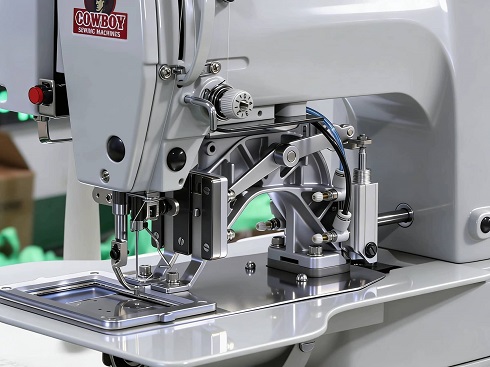

3. Presser foot control mechanism always provides uniform thread tightness (when thickness of material has been changed, the height of stepping presser foot is changed accordingly without tools required);

4. Thanks to its high sewing speed and unique thread trimming mechanism, the cycle time is substantially decreased, enhancing productivity and efficiency;

5. This machine features an on-board LCD touch screen control panel with programming functions and pattern editing options;

6. Needle thread grasping mechanism helps produce consistent knot tying at the beginning of sewing;

7. We have in-house technicians who have over 20 years of combined experience with heavy duty sewing equipment, if you're looking to automate your sewing application and lower labor cost we can help. Our expert advisors are ready to help guide you through the process.

Applications:

dog collars, leashes & harnesses, seat belts, cargo nets, rigging straps, heavy duty belting, backpack, bag handles etc.

Sewing rope leash                                Sewing dog collar                                    Sewing seat belts

Specifications:

Max. Sewing Speed:

3000 rpm

Hook Type:

Double-capacity shuttle hook

Sewing Area:

60mmX80mm

Needle System:

DPX17#18

Max. Thread size

Metric #15 (=V207, T-210, 630dx3)

Feed mechanism:

Intermittent feed, pulse motor drive

Bobbin size:

Outside Dia. 23.5mm, Height 13.5mm

Stitch Length:

0.05 - 12.7 mm

Tariff code (HS code):

8452219000

Work Holder Lift :

32mm

NeedleBar Stroke:

41.2mm

Presser Foot Lift:

17mm

Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

200 patterns

Work clamp lifter:

Electric

Pattern Storage :

Internal & USB

Pattern Input :

Touch screen

Max. Number of Stitches:

20,000 per pattern

Drive Motor:

Limi-Servo (550 Watts)

Air pressure:

0.5 MPa 1.8 l/min

Power:

200-240 Volt 1 or 3 Phase

Thread trimmer system:

Horizontal engagement with fixed knife and movable knife

Lubrication system:

Replenishment with the oil braids from the oil tanks

Package (plywood case):

1230x123x1440MM, G.W: 190 KGS


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
