53800 Double needle long arm Jumbo bag sewing machine for
Baffle sewing of container bags

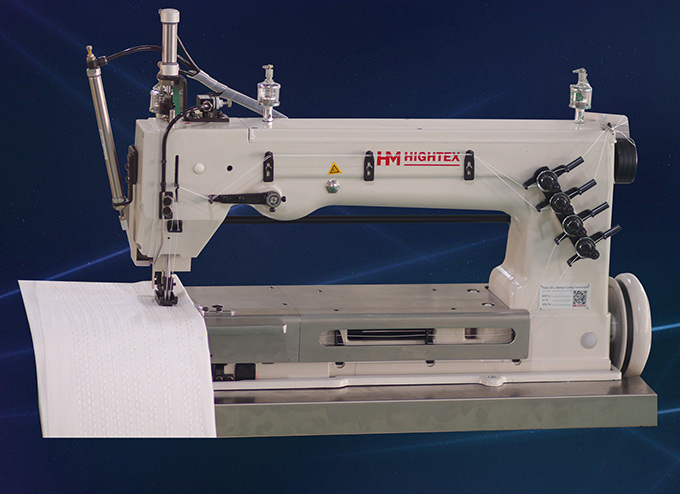

53800 Long arm Jumbo bag sewing machine for Baffle sewing of container bags
53800 Baffle Sewing of Container Bags width=
Double Needle

53800 sewing baffles
Thread Chain Cutter

Your advantages:

1. Large working area under the arm (534x160mm) allow you to sew straight lines into wide PP fabric without folding the fabric on the right side;

2. Lower feed & alternating upper feed mechanism is great for sewing layers of jumbo bag fabric;

3. Automatic lubrication with oil pan ensures low vibration and long working life;

4. This long arm jumbo bag sewing machine for baffle sewing of container bag standard supplied with pneumatically operated hot thread chain cutter;

5. This double needle, four thread Baffle bag sewing machine standard with single needle attachment for one needle/two thread sewing operatioin;

6. Guides for filler cord from the top and / or from below for sealing the needle punctures of the left needle;

7. Pnumatic presser foot lift and automatic needle position servo motor. It is good replacement of Union Special BML100 long arm Baffle bag sewing machine.

Applications:

Specially designed for Bafflle Sewing Of Container Bags. Specially suitable to sew straight lines into wide PP fabric without folding the fabric on the right side (Filler Cord from top & below can be stitched for sealing needle punctures)


Specifications:

Stitch types:

401

Sewing Capacity :

Up to 10 mm

Max. sewing speed:

1800 RPM

Sewing Area:

534x160mm

Needle System:

DR X 2 #26

Feed type:

Lower Feed & Alternating Upper Feed

Tariff code (HS):

8452290000

Neegle gauge:

8 mm

Stitch Range:

11- 16mm

Thread cutter:

Hot thread chain cutter

Motor:

750W, 200-240 Volt 1 Phase

Air pressure:

0.6 MPa

Number of yarn:

4

Presser foot lift

Pneumatic Controlled

Stitching Thread:

Multi Filament, Fabricated Yarn

Lubrication:

Automatic lubrication with oil pan

Package (assembly):

1220x640x1480MM

Gross Weight:

260KGS
