7335ECO Low cost cylinder arm, walking foot sewing
machine with BIG bobbin for binding operations on small
leather goods, leather garments, upholstery, shoes, etc.

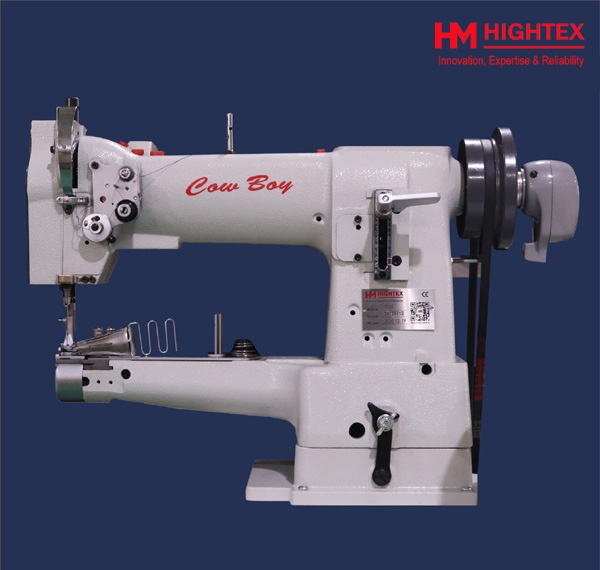

Best Low Cost Cylinder Arm Walking Foot Sewing Machine for Binding Operations

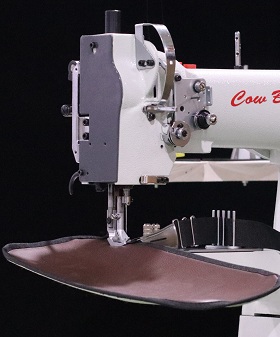

PFAFF 335 Cylinder Arm Walking Foot Sewing Machine
Full synchronized binder

PFAFF 335 -1701 for Binding Operations
BIG bobbin

Your advantages:

1. Cylinder-Bed Design: Ideal for sewing tubular or pre-attached articles, enhancing accessibility and maneuverability;

2. Excellent Feeding Properties: Equipped with a unison feed system that ensures smooth and consistent feeding, delivering superior sewing quality;

3. High Performance and Reliability: Designed for excellent sewing quality, providing confidence in performance across a variety of materials;

4. Precise Stitch Setting: Offers consistent stitch settings across a wide range of fabrics, ensuring professional results;

5. Rugged Construction: Built for durability, this machine features a robust design that is easy to maintain, ensuring long-term reliability;

6. High Top Feed Lift: The 7mm lift allows for trouble-free sewing of thick materials and easy navigation over cross seams;

7. Easy Loading and Unloading: With a high fabric clearance of 15mm, this machine facilitates the loading and unloading of bulky materials with ease.

Applications:

Suitable for working on tubular or pre-attached articles:
1. Standard sewing work on leatherware, bags and leather crafts;
2. Binding of shoes, bags and leatherware with leather, imitation leather or textile tape;
3. Piping work on bags, suitcases and upholstery;
4. Decorative stitching in small leather goods


Specifications:

Max. Sewing Speed:

2200 rpm

Hook Type:

1.4 times large rotary hook

Presser Foot Lift:

14mm

Needle bar stroke:

33.4 mm

Needle System:

134–17 DP×17 Nm 80–100

Thread take-up lever stroke:

59.6 mm

Stitch Length:

0-6mm

Bobbin size:

Outside Dia. 25.4mm, Height 10.6mm

Max. top feed stroke:

7 mm

Cylinder arm diameter:

46.5mm

Working space:

257mm (length) x110mm( High)

Recommended motor:

Minimum 0.55 kW

Packing size:

775×275×480MM, 35KGS

Tariff code (HS code):

8452290000



Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
