205-370 Extra heavy duty cylinder arm triple feed lockstitch
sewing machine with large Barrel shuttle hook for very thick
sewing threads and heavy materials

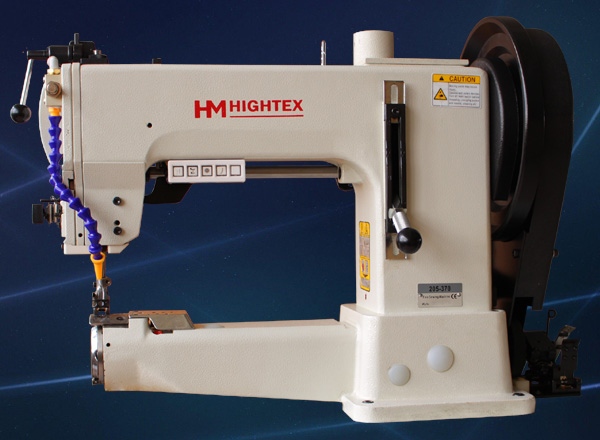

Adler 205-370 sewing machine
Adler 205-370 stitching machine
Large Barrel Shuttle Hook

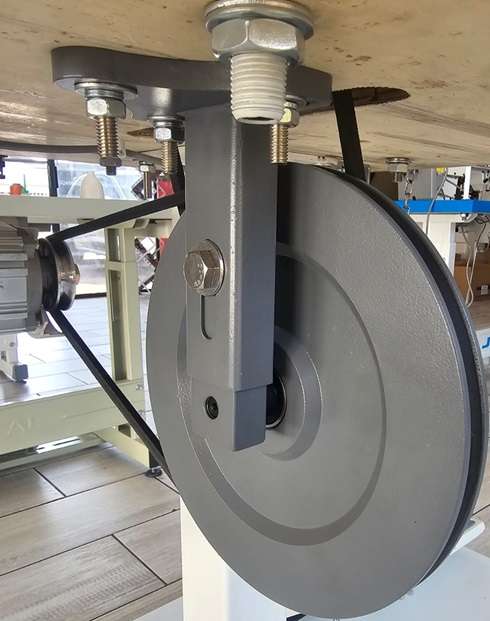

sewing machine speed reduction
Precision step-by step stitching

Your advantages:

1. The 205 class walking foot sewing machine with large Barrel shuttle has been specially designed for processing the extreme thick thread and heavy weight materials;

2. Due to the extremely sturdy design and powerful & effective triple feed system guarantees a trouble-free and displacement-free material feed when processing most different fabric thicknesses;

3. The free-arm construction allows an unhindered material handling and guarantees high quality production of 3-dimensional material parts when making shoes, saddlery, technical textiles and upholstery;

4. The extremely high sewing foot lift up to 20 mm facilitates the feeding and removing of bulky workpieces;

5. Up to 14 mm long stitches for assembly and decorative seams;

6. A full array of special sewing equipment and labor saving devices are available for high productivity and perfect seam quality;

7. Using low speed, high torque extra powerful servo motor (Click here for detail) that allowing you to slow down your sewing machine and sew stitch by stitch (eliminates the need for a now obsolete, "Speed Reducer");


Optional Sewing Equipment:

1) Automatic presser foot lift; 2) Automatic back tacking (reverse); 3) Automatic needle UP/DOWN position servo motor; 4) Needle cooling system; 5) Pneumatic center seam guide; 6) Hi-Intensity LED working light ; 7) other sewing attachment in this linkage


Typical Application and Subclass:

205-370BF Upholstery sewing machine for thick thread decorative seams: leather sofas and armchairs, office chair, car upholstery and marine upholstery

205-370AE Saddlery sewing machine: saddles, harness, horse tack, sheath, bridles, gun holsters, belts, wallets, bags, handbags and leather crafts

205-370GE Leather sewing machine for leather goods factory: leather shoes, leather belts, leather bags, bag handles, softball bags, golf bags

205-370CS Webbing sewing machine for technical textiles: webbing lifting slings, safety harness, military belts, backpacks, cargo straps, filter bags & filter socks, industrial safety products and tire covers


Specifications:

Max. Sewing Speed:

800 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:

20mm

Needle bar stroke:

56 mm

Needle System:

794 needle, #160-#280

Max. Thread size

8/3 (=V415, T-400) or 1.4mm Braided yarn

Stitch Length:

0-14mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

96 mm

Presser foot alternating:

10mm

Working space:

320mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

770x620x520MM, 75KGS

Tariff code (HS code):

8452290000
