cowboysew
205-370-40 Extra heavy duty long arm cylinder bed
triple feed leather sewing machine with large Barrel
shuttle hook for saddlery and leatherwork

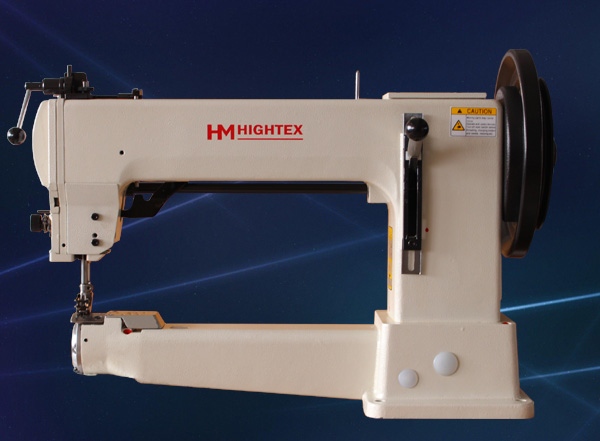

205 long arm leather sewing machine
Adler 205-370 stitching machine
Large Barrel Shuttle Hook

sewing machine speed reduction
Precision step-by step stitching

Your advantages:

1. Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads;

2. Constant stitch lengths due to optimized triple feed mechanism, even in case of extremely thick materials;

3. Up to 14 mm long stitches for decorative topstitching seams;

4. Excellent climbing properties guarantee easy sewing thick spots or overlapping cross seams, without skipped stitch;

5. Long sewing cycles by barrel hook with large bobbin capacity, even in case of thick threads;

6. A full array of special sewing equipment are available for high productivity and perfect seam quality.


Optional Sewing Equipment:

1) Automatic presser foot lift; 2) Automatic back tacking (reverse); 3) Automatic needle UP/DOWN position servo motor; 4) Needle cooling system; 5) Pneumatic center seam guide; 6) Hi-Intensity LED working light ; 7) other sewing attachment in this linkage


Typical Application and Subclass:

205-370-40BF Upholstery sewing machine for thick thread decorative seams: leather sofas and armchairs, office chair, car upholstery and marine upholstery

205-370-40AE Saddlery sewing machine: saddles, harness, horse tack, sheath, bridles, gun holsters, belts, wallets, bags, handbags and leather crafts

205-370-40GE Leather sewing machine for leather goods factory: leather shoes, leather belts, leather bags, bag handles, softball bags, golf bags

205-370-40CS Webbing sewing machine for technical textiles: webbing lifting slings, safety harness, military belts, backpacks, cargo straps, filter bags & filter socks, industrial safety products and tire covers


Specifications:

Max. Sewing Speed:

800 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:

20mm

Needle bar stroke:

56 mm

Needle System:

794 needle, #160-#280

Max. Thread size

8/3 (=V415, T-400) or 1.4mm Braided yarn

Stitch Length:

0-14mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

96 mm

Presser foot alternating:

10mm

Working space:

420mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

860x520x630MM, 85KGS

Tariff code (HS code):

8452290000



Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
