204-102 Heavy duty double needle Moccasin stitching
machine (= mocca sewing machine) with large Barrel
shuttle hook for shoes, bags and leather goods

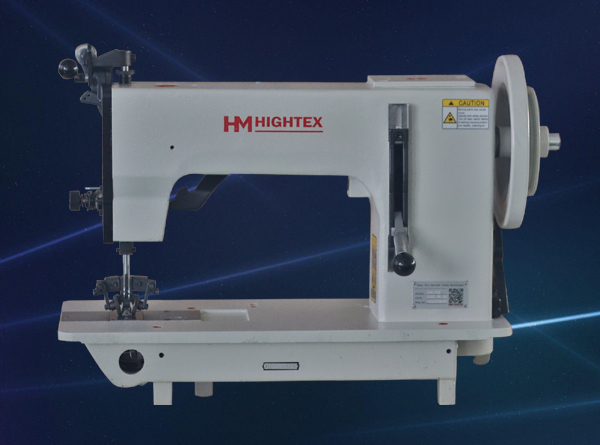

204-102 Double needle Mocca Sewing Machine
Adler 205-370 stitching machine
204-102 Moccasin Stitching Machine

Your advantages:

1. Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads;

2. The roller foot allows for detailed edge sewing;

3. The presser foot has an extra high lift and can go up to 15mm, allowing for a large range of extra heavy weight material or bulky items to be used;

4. The special extra large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);

5. According to the real demand of sewn products, it could apply normal moccasin stitch or cord-insert moccasin stitch;

6. Standard supply with HM-750T strong, slient & reliable servo motor and needle positioner synchronizer that you can stop needle in the down position and up position.


Application:

This is the basic and economic moccasin stitching machine for double needle moccasin sewing of shoe uppers. It is also very good machine for, bags, upholstery and horse saddle.


Specifications:

Max. Sewing Speed:

800 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:

15mm

Needle bar stroke:

56 mm

Needle System:

794 needle, #160-#280

Max. Thread size

8/3 (=V415, T-400) or 1.4mm Braided yarn

Stitch Length:

0-10mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

96 mm

Presser foot alternating:

10mm

Working space:

320mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

770x620x520MM, 85KGS

Tariff code (HS code):

8452290000



Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
